Ashcroft Sanitary Pressure Gauge, 1032 Fractional
Images are representations only.

TYPE 1032 FRACTIONAL SANITARY PRESSURE GAUGE

Series: 1032 Fractional Sanitary Pressure Gauge Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Size - 2"
  • System (Tube & Socket) - 316 Stainless Steel Bourdon Tube & Socket
  • Process Connection Size - 3/4" Tri-Clamp Only
  • Connection Location - Lower
  • Options - Without
  • Calibration Chart - Without Calibration Chart
  • Tag - Standard Tag
  • Window Material - Glass
  • Movement - Without Flutterguard Lubricated Movement
  • Pressure Range - psi: 0 to 30

Specifications

Brand

Accuracy

  • Downscale: up to 5% Downscale
  • Upscale: 3% Upscale

Applications

  • Biotechnology
  • Filtration Systems
  • Food & Dairy
  • Medical Equipment
  • OEM Equipment
  • Pharmaceutical

Approvals & Certifications

  • Calibration
  • CRN
  • RoHS

Diaphragm Material

  • 316L Stainless Steel, 12 to 20 RA Electro-Polished

Enclosure, Body Material

  • 304 Stainless Steel Electro-Polished

Fill Material

  • System Fill: USP Food Grade Glycerin

Lens

  • Window: Acrylic Lens
  • Window: Glass Lens
  • Window: Safety Glass

Materials of Construction

  • Bourdon Tube & Socket: 316L Stainless Steel
  • Pointer: Black-Painted Aluminum, Non-adjustable
  • Ring: 304 Stainless Steel

Movement

  • 300 Stainless Steel

Name Plate, Tag Material

  • Paper
  • Stainless Steel

Pressure Range

  • bar: 0 to 41.37
  • Inches Hg: -30 to 0
  • kPa: 0 to 4,137
  • psi: 0 to 600

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Size

  • Dial: 2"

Tri-Clamp Connection

  • 3/4" Tri-Clamp®

Documentation

Data Sheets

Industry Brochures

Product Information

Selection Guides

View Product Series

Similar SKUs

TYPE 1036
TYPE 1036
1036 In-Line Sanitary Pressure Gauge
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 1198
TYPE 1198
1198 Finned Siphon
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 310/TYPE 315
TYPE 310/TYPE 315
310/315 All-Welded Mini Diaphragm Seal
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 4080/4480
TYPE 4080/4480
4080/4480 Pneumatic Transmitter
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 1125/1125A
TYPE 1125/1125A
1125/1125A Differential Pressure Gauge
Ashcroft Inc.
Request a Quote
Out of Stock

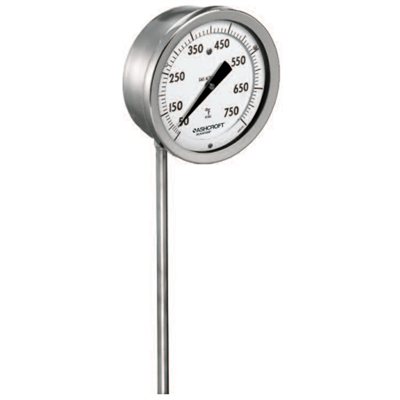

MODEL C-600B
MODEL C-600B
Model C-600B Duratemp Thermometer
Ashcroft Inc.
Request a Quote
Out of Stock

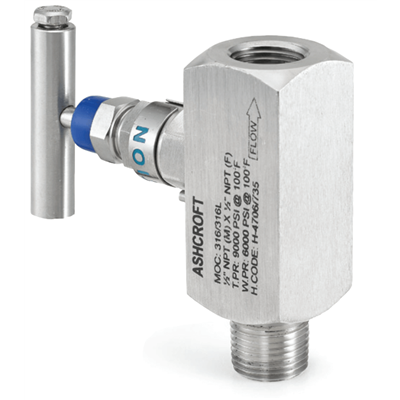

V01 SERIES GAUGE VALVE
V01 SERIES GAUGE VALVE
V01 Series Gauge Valve
Ashcroft Inc.
Request a Quote
Out of Stock

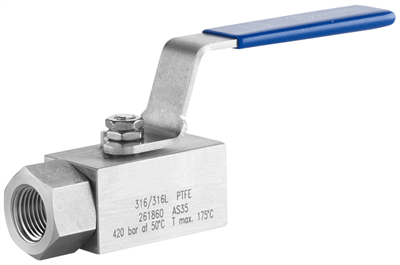

V02 SERIES HIGH PRESSURE BALL VALVE
