Ashcroft In-Line Sanitary Pressure Gauge, 1036
Images are representations only.

TYPE 1036

Series: 1036 In-Line Sanitary Pressure Gauge Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Dial Size - 3-1/2"
  • System - Stainless Steel
  • Fill Material - Glycerine
  • Connection Size - 1.5" Seal
  • Connection Location - Lower
  • Options - Without
  • O-Ring - Buna-N
  • Window Material - Polycarbonate
  • Performance - Standard
  • Range - 0 to 15 psi

Specifications

Brand

Accuracy

  • 1.5% of Full Scale for Pressure Ranges 100 psi & above
  • 2% of Full Scale for Vacuum, Compound & Ranges Below 100 psi

Applications

  • Biotechnology
  • Filtration Systems
  • Food & Dairy
  • Medical Equipment
  • OEM Equipment
  • Pharmaceuticals

Approvals & Certifications

  • 3A Sanitary 74
  • ISO 9001

Diaphragm Material

  • 316L Stainless Steel, Electro-Polished 12 to 20 RA

Enclosure, Body Material

  • 304 Series Stainless Steel

Fill Material

  • System: USP Food Grade Glycerin

Lens

  • Window: Polycarbonate Lens
  • Window: Polysulfone

Materials of Construction

  • Bourdon Tube & Socket: 316L Stainless Steel
  • Pointer: Black-Painted Aluminum with External Zero Adjust

Movement

  • 300 Series Stainless Steel

O-Ring Material

  • Diaphragm O-Ring: Buna-N
  • Diaphragm O-Ring: Viton

Pressure Range

  • bar: 1 to 41.3
  • kPa: 103.4 to 4,137
  • psi: 15 to 600

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Ring Material

  • 304 Series Stainless Steel (Bayonet, Removable)

Size

  • Dial: 3.5" (89 mm)

Temperature Range

  • Autoclave or Sterilize: 149° C (300° F) when Supplied with Polysulfone Window
  • Clean or Steam in Place (CIP or SIP): 138° C (200° F)

Tri-Clamp Connection

  • 1-1/2" Sanitary Clamp

Documentation

Data Sheets

Industry Brochures

Selection Guides

View Product Series

Similar SKUs

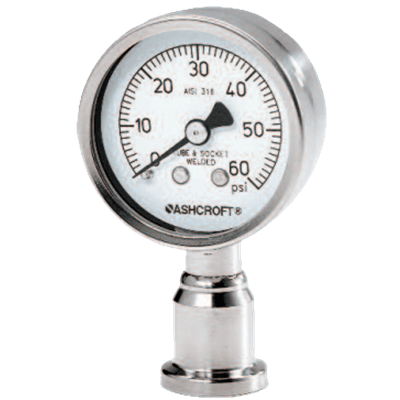

TYPE 1032 FRACTIONAL SANITARY PRESSURE GAUGE
TYPE 1032 FRACTIONAL SANITARY PRESSURE GAUGE
1032 Fractional Sanitary Pressure Gauge
Ashcroft Inc.
Request a Quote
Out of Stock

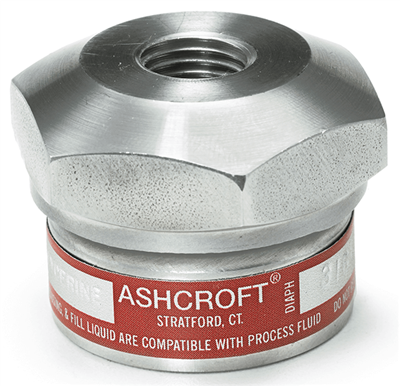

TYPE 310/TYPE 315
TYPE 310/TYPE 315
310/315 All-Welded Mini Diaphragm Seal
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 311/TYPE 312
TYPE 311/TYPE 312
311/312 All-Welded Mini-Diaphragm Seal
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 402/TYPE 403
TYPE 402/TYPE 403
402/403 Flanged All-Welded Diaphragm Seal
Ashcroft Inc.
Request a Quote
Out of Stock

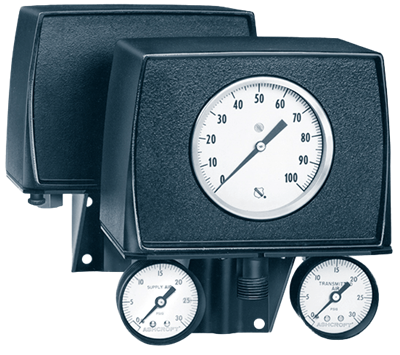

TYPE 4080/4480
TYPE 4080/4480
4080/4480 Pneumatic Transmitter
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 1125/1125A
TYPE 1125/1125A
1125/1125A Differential Pressure Gauge
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 82
TYPE 82
82 Threaded Isolation Ring
Ashcroft Inc.
Request a Quote
Out of Stock

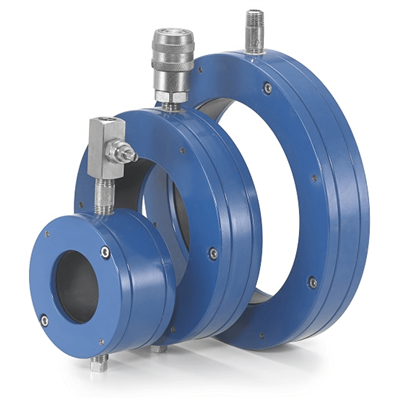

TYPE 80
