Ashcroft Pressure Gauge Comparator, 1327D
Images are representations only.

TYPE 1327D

Series: 1327D Pressure Gauge Comparator Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Unit of Measure - psig
  • Gauge Ranges - psig: 0 to 150

Specifications

Brand

Accuracy

  • 0.25% of Gauge Span

Applications

  • Calibration Labs
  • Test & Measurement

Approvals & Certifications

  • ISO 9001

Enclosure, Body Material

  • Pump: Aluminum Alloy

Materials of Construction

  • Bourdon Tube Materials: Bronze
  • Bourdon Tube Materials: K-Monel®

Media

  • Distilled Water (with Sodium Molybdate & Phosphoric Acid Additives Recommended as Corrosion Inhibitors) - 1327DO
  • Phosphate or Glycol Base Hydraulic Fluids - 1327DH
  • SAE 20 Automotive or Machine Oil - 1327D

NACE & NIST

  • NIST

O-Ring Material

  • Buna-N (1327D & 1327DO)
  • Ethylene Propylene (1327DH)

Operating Pressure

  • psi: 0 to 10,000 (kPa: 0 to 70,000, bar: 0 to 700), Maximum

Size

  • Dial: 4-1/2" (114.3 mm)

Documentation

Data Sheets

Installation & Maintenance

View Product Series

Similar SKUs

TYPE 1036
TYPE 1036
1036 In-Line Sanitary Pressure Gauge
Ashcroft Inc.
Request a Quote
Out of Stock
TYPE 1115A/1115P
TYPE 1115A/1115P
1115A/1115P Line Assembly
Ashcroft Inc.
Request a Quote
Out of Stock

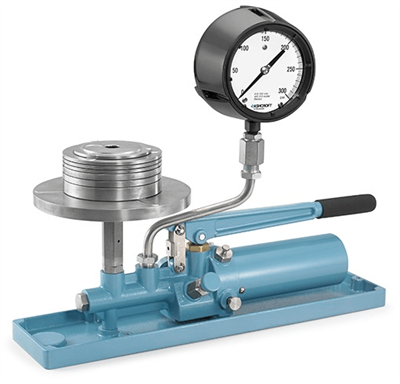

TYPE 1305D
TYPE 1305D
1305D DeadWeight Tester
Ashcroft Inc.
Request a Quote
Out of Stock

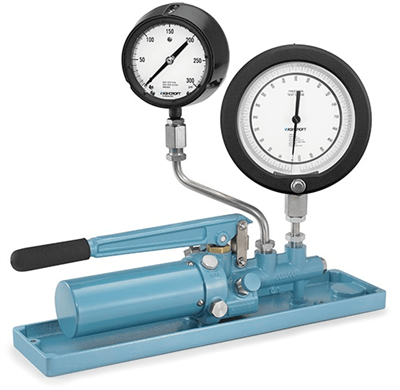

TYPE 1327CM
