Precision Digital ProVu Dual-Input Process Meter, PD6060 Series
Images are representations only.

PD6060-6H4

Series: PD6060 ProVu Process Meter Brand: Precision Digital Corporation
Price
Request a Quote
Stock
Out of Stock
Request Information

Precision Digital ProVu Dual-Input Process Meter, PD6060 Series
  • Display - SunBright Display
  • Power Supply - 85-265 Vac
  • Relay - 4 Relays

Specifications

Brand

Alarm

  • Unused Alarm LEDs & Relays May Be Disabled
  • User May Program Any Alarm for High or Low Trip Point

Approvals & Certifications

  • UL

Calibration

  • +10 Volts: Minimum Span Input 1 & 2: 0.10 Volts
  • 4-20 mA: Minimum Span Input 1 & Input 2: 0.15 mA

Communication

  • Serial Communication Adapters

Deadband

  • 0 to 100% of Span
  • User Programmable

Display

  • Red LEDs
  • Upper: 0.60" High, Lower: 0.46" High

Electrical Connectors

  • Digital I/O
  • Removable Terminal Blocks Accept 12 to 20 AWG
  • RJ45 for External Relays

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X / IP66

Humidity

  • 0 to 90% Non-Condensing

Input

  • Two Channel

Isolation

  • 4 kV Input/Output-to-Power-Line
  • 500 V Input to Output or Output to P+ Supply

Mounting

  • 1/8" DIN Panel Cut-out Required. Two Panel Mounting Brackets Included.

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Output

  • 4-20 mA

Programming

  • Cloning Using Copy Function
  • Digital Inputs
  • Four Front Panel Buttons
  • Modbus Registers
  • PC & MeterView Pro Software

Rating

  • 2 or 4 SPDT Internal and/or 4 SPST External Relays

Relay Operation

  • Automatic (Non-Latching)
  • Latching (Requires Manual Acknowledge)
  • Off (Disable Unused Relays & Enable Interlock Feature, Manual On/Off Control Mode)
  • Pump Alternation Control (2 to 8 Relays)
  • Sampling (Based on Time)

Supply Voltage

  • 90-265 Vdc

Torque

  • 5 In/Lbs

Documentation

Data Sheets

Certifications

Instruction Manuals

Modbus Tables

View Product Series

Similar SKUs

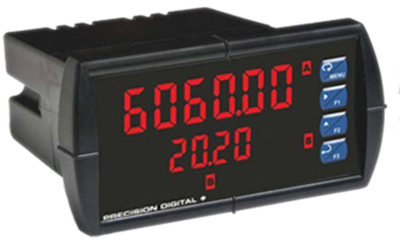

PD6060-6H5
PD6060-6H5
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6060-6R4
PD6060-6R4
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6060-6H2
PD6060-6H2
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6060-6R2
PD6060-6R2
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6060-6H7
PD6060-6H7
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6060-6H0
PD6060-6H0
PD6060 ProVu Process Meter
Precision Digital Corporation
Request a Quote
Out of Stock
PD6300-6H4
PD6300-6H4
PD6300 ProVu Pulse Input Flow Rate/Totalizer
Precision Digital Corporation
Request a Quote
Out of Stock

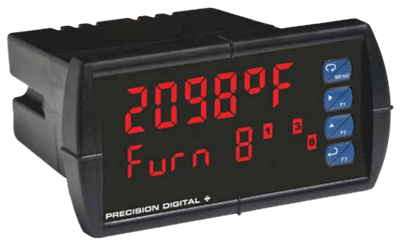

PD7000-6H4
