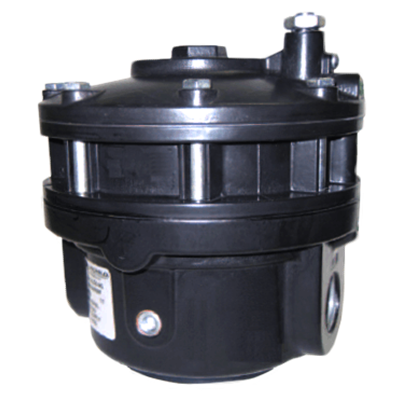

Fairchild Pneumatic Volume Booster, Model 4900A
Images are representations only.

4916AHNNS

Series: Model 4900A Pneumatic Volume Booster Brand: Fairchild Industrial Products - by Rotork
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Ratio - 1:1
  • Port Size - 3/4"
  • Port Thread - BSPP
  • Elastomers - Nitrile
  • Feedback Option - No Feedback Port
  • Trim - Stainless Steel

Specifications

Brand

Ambient Temperature Range

  • -40° to 93.3° C (-40° to 200° F)

Approvals & Certifications

  • CRN

BSP Connection

  • 1" BSPP Female
  • 1" BSPT Female
  • 3/4" BSPP Female
  • 3/4" BSPT Female

Diaphragm Material

  • Nitrile on Dacron

Elastomers

  • FluoroCarbon
  • Nitrile

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 100 scfm (170 m³/hour)

Flow Capacity

  • 500 scfm (850 m³/hour) at psig: 100 (kPa: 700, bar: 7)

Flow Rate

  • 9.0 Cv

NPT Connection

  • 1" NPT Female
  • 3/4" NPT Female

Ratio

  • 1:1

Ratio Accuracy

  • 0.5% of psi: 100 (kPa: 700, bar: 7) Output Span

Signal or Output Pressure - Maximum

  • psig: 150 (kPa: 1,000, bar: 10)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • psi: 0.10 (kPa: 0.7, bar: 00.7) for psi: 100 (kPa: 700, bar: 7) Change in Supply Pressure

Trim Material

  • Stainless Steel
  • Zinc-Plated Steel
