Eurotherm Frequency Divider/Scaler, AP7510
Images are representations only.

AP7510-6001U

Series: AP7510 Frequency Divider/Scaler Brand: Eurotherm
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Coating - Urethane Coating of Internal Circuitry for Protection From Corrosive Atmospheres
  • Line Power - 120 VAC Standard
  • Factory Calibration - Without

Specifications

Brand

Accuracy

  • ± 1 Input Pulse

Calibration

  • ± 1 Input Pulse

Consumption

  • Power Consumption: 3 W Typical
  • Power Consumption: 5 W, Maximum

Display

  • LED Display

Electrical Connectors

  • 11-Pin
  • Screw Terminal

Enclosure Finish

  • Urethane Coating

Frequency

  • Absolute, Maximum
  • Minimum Output Frequency: 0.1 Hz

Input

  • 50 mVpp-5 Vpp to A, Maximum
  • Contact Closures 15 V Pullup at 1 mA
  • Pulse
  • Sine Wave
  • Square Wave

Input Impedance

  • 10 KiloOhms, Nominal

Isolation

  • Input to Output, or Either Input/Output to Line Power: 600 Vdc

Load

  • 1 KiloOhm Minimum

Mounting

  • DIN Rail
  • Track/Surface

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Output

  • 1 KW Load Minimum, Frequency to 0.99999 of, Maximum
  • 5 Vdc Pulse at 10 mA - Maximum
  • TTL Compatible, or 24 Vdc Pulse

Power

  • 120/240 Vac (± 10%, 50/400 Hz)

Sensitivity

  • Adjustable Input of 50 mVpp-5 Vpp, User Accessible

Storage Temperature

  • -20° to 85° C (-4° to 185° F)

Documentation

Data Sheets

View Product Series

Similar SKUs

AP4382-2000U
AP4382-2000U
AP4382 Field Configurable Isolator
Eurotherm
Request a Quote
Out of Stock
AP4382-2000UP
AP4382-2000UP
AP4382 Field Configurable Isolator
Eurotherm
Request a Quote
Out of Stock
AP7501-6012U
AP7501-6012U
AP7500 & AP7501 DC to Frequency Converter
Eurotherm
Request a Quote
Out of Stock
AP7501-6016U
AP7501-6016U
AP7500 & AP7501 DC to Frequency Converter
Eurotherm
Request a Quote
Out of Stock
AP7500-50UP
AP7500-50UP
AP7500 & AP7501 DC to Frequency Converter
Eurotherm
Request a Quote
Out of Stock

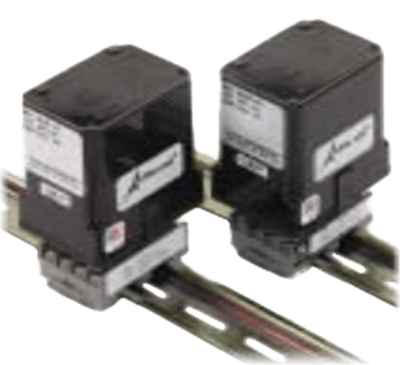

AP9046-101U
