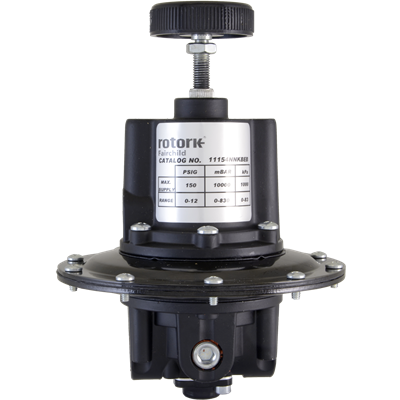

Fairchild Pneumatic Low Pressure Precision Pressure Regulator, Model 11
Images are representations only.

11103HNKBSP

Series: Model 11 Pneumatic Pressure Regulator Brand: Fairchild Industrial Products - by Rotork
Price
Request a Quote
Stock
Out of Stock
Request Information

Fairchild Pneumatic Low Pressure Precision Pressure Regulator, Model 11 Fairchild Pneumatic Low Pressure Precision Pressure Regulator, Model 11 Fairchild Pneumatic Low Pressure Precision Pressure Regulator, Model 11
  • Pressure Range - 0 to 2 psi
  • Port Size - 3/8" NPT
  • Port Thread - BSPP (Parallel)
  • Elastomers - Nitrile
  • Actuation Adjustment Means - Knob Adjustment
  • Relief - Low Bleed
  • Exhaust Port - Straight
  • Mounting - Panel Mounting

Specifications

Brand

Actuator Type

  • Knob Adjust
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • FluoroCarbon (Viton)
  • Nitrile

Enclosure, Body Material

  • Aluminum

Exhaust Capacity - Relieving Units Only

  • 0.5 scfm
  • 0.5 scfm (0.85 m³/hour) Where Downstream Pressure is psig: 0.1 (bar: 0.007, kPa: 0.7) Above psig: 1.0 (bar: 0.06, kPa: 6.8) Set Point
  • 0.85 m³/hour

Flow Capacity

  • 24 scfm (40.7 m³/hour)
  • 24 scfm (40.7 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 1 (bar: 0.06, kPa: 0.68) Set Point
  • 40.7 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • Bonnet Mounting
  • Panel Mount

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • None

Pressure Range

  • bar: 0 to 0.82
  • bar: 0 to 1.36
  • kPa: 0 to 137
  • kPa: 0 to 82.7
  • psig: 0 to 12
  • psig: 0 to 20

Relief

  • Low Bleed
  • Non-Relieving
  • Relieving

Sensitivity

  • 0.05" WC (0.127 cm)

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • psig: 150

Supply Pressure Effect

  • less than 0.0007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.07)
  • less than psig: 0.01 (bar: 0.0007, kPa: 0.07) for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
  • less than psig: 0.01 (bar: 0.007, kPa: 0.07)

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust

Documentation

Data Sheets

Product Manuals

Catalogs
