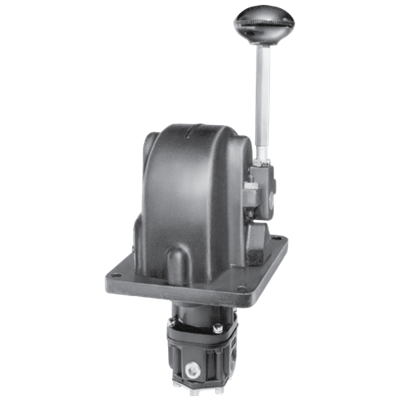

Fairchild Pneumatic Lever Operated Regulator, Model 3400
Images are representations only.

3443

Series: Model 3400 Lever Operated Pressure Regulator Brand: Fairchild Industrial Products - by Rotork

FAIRCHILD Model 3400 Pneumatic Lever Operated Regulator, 1-60 psig, 10-400 kPa, 3/8" NPT

Price
Request a Quote
Stock
Out of Stock
Request Information

  • Set Point Range: 1-60 psig, 0.07-4 bar, 7-400 kPa
  • Supply Pressure (Maximum): 250 psig, 17.0 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Port Size: 3/8" NPT
  • Materials of Construction:
    • Body: Zinc
    • Trim: Zinc Plated Steel and Plastic
    • Diaphragms: Buna N and Dacron

Specifications

Brand

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

Diaphragm Material

  • Buna-N
  • Dacron

Enclosure, Body Material

  • Zinc

Exhaust Capacity - Relieving Units Only

  • 8 scfm (13.6 m³/hour)

Media

  • Compressed Air
  • Gas

Mounting

  • Panel Mount

NPT Connection

  • 1/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 0.035 to 0.7
  • bar: 0.035 to 2
  • bar: 0.07 to 4
  • bar: 0.15 to 10
  • kPa: 15 to 1,000
  • kPa: 3.5 to 200
  • kPa: 3.5 to 700
  • kPa: 7 to 400
  • psi: 0.5 to 30
  • psig: 0.5 to 10
  • psig: 1 to 60
  • psig: 2 to 150

Sensitivity

  • 1/2" WC (1.27 cm)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • less than psig: 0.1 (bar: 0.007, kPa: 0.7) Per psig: 100 (bar: 7, kPa: 700) Change

Trim Material

  • Plastic
  • Zinc-Plated Steel

Documentation

Data Sheets

Installation Instructions
