Eurotherm Frequency Input, Field Configurable Signal Conditioner, AP7380
Images are representations only.

AP7380-0000U

Series: AP7380 Field Configurable Signal Conditioner Brand: Eurotherm
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Coating - Urethane Coating of Internal Circuitry for Protection From Corrosive Atmospheres
  • Factory Calibration - Without

Specifications

Brand

Accuracy

  • ± 0.1% of Selected Range at 25° C (77° F)

Approvals & Certifications

  • CSA C22.2 No. 0-M91 & 142-M1987 (File No. LR42272-64)
  • IEC 801-2, Level 2 (4 kV)
  • UL (C,US), UL508 (File No. E99775)

Consumption

  • Power Consumption: 2 W Typical
  • Power Consumption: 3 W, Maximum

Display

  • LED Display

Electrical Connectors

  • 8-Pin

Electromagnetic Rating

  • ESD Protection

Frequency

  • Frequency Input (Full Scale Range): 2 to 10,000 Hz
  • Input (Over-Range): 20 kHz, Maximum
  • LED Indication: Input 107% Then 8 Hz Flash

Humidity

  • Operating: 15 to 95% Non-Condensing at 45° C (113° F)
  • Soak: 90% Non-Condensing for 24 Hours at 65° C (149° F)

Hysteresis

  • ± 0.1% of Selected Range at 25° C (77° F)

Input

  • 0 to 1,000 Hz
  • Amplitude Range: 150 mVp-10 Vp
  • Amplitude Range: 150 Vrms, Maximum
  • Common Mode (Input to Ground): 1,500 Vdc, Maximum
  • Overvoltage: 180 Vrms, Maximum

Input Impedance

  • > 10 KiloOhms

Isolation

  • 1,500 Vdc between Input, Output & Power

Linearity

  • ± 0.1% of Selected Range at 25° C (77° F)

Mounting

  • DIN Rail
  • Track/Surface

Operating Temperature

  • -15° to 60° C (5° to 140° F)

Output

  • 0-10 V
  • 0-20 mA
  • Compliance (0-1 mA): 10 V, Maximum
  • Compliance (4-20 mA): 20 V, Maximum
  • Drive: 10 mA - Maximum

Output Impedence

  • Current: > 100 KiloOhms
  • Voltage: < 10 ohms

Power

  • Selectable 120/240 Vac (± 10%, 50/60 Hz)

Response Time

  • 10-90%: 3 Input Cycles Plus 250 milliseconds

Sensitivity

  • 1 V Peak (LO)

Span & Zero Adjustments

  • Zero Turn-Up (9998 Hz), Span Turn-Down (2 Hz): 99% of Full Scale

Stability

  • ± 0.025% / °C, Maximum

Storage Temperature

  • -25° to 70° C (-13° to 158° F)

Documentation

Data Sheets

View Product Series

Similar SKUs

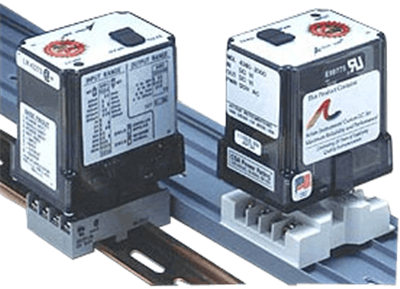

AP4382-2000UP
AP4382-2000UP
AP4382 Field Configurable Isolator
Eurotherm
Request a Quote
Out of Stock
AP4391-2000UC620
AP4391-2000UC620
AP4390/AP4391/AP4392 DC Input, Dual Channel Isolator
Eurotherm
Request a Quote
Out of Stock
AP4391-2000U
AP4391-2000U
AP4390/AP4391/AP4392 DC Input, Dual Channel Isolator
Eurotherm
Request a Quote
Out of Stock
AP4392-2000U
AP4392-2000U
AP4390/AP4391/AP4392 DC Input, Dual Channel Isolator
Eurotherm
Request a Quote
Out of Stock
AP4390-0000U
AP4390-0000U
AP4390/AP4391/AP4392 DC Input, Dual Channel Isolator
Eurotherm
Request a Quote
Out of Stock
AP4392-2000UC620
AP4392-2000UC620
AP4390/AP4391/AP4392 DC Input, Dual Channel Isolator
Eurotherm
Request a Quote
Out of Stock

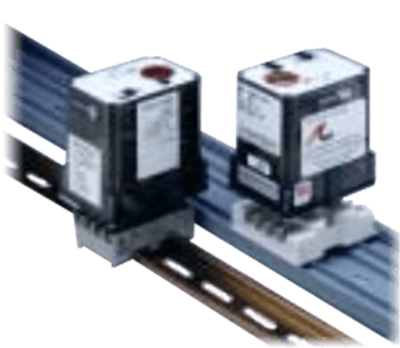

AP7380-0000UC620
