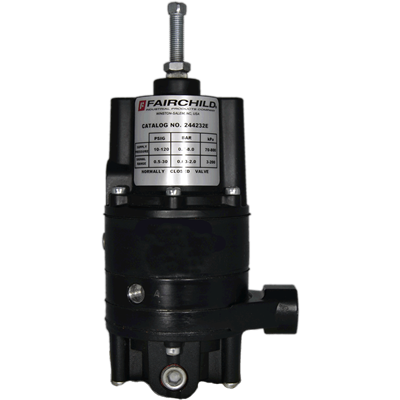

Fairchild Snap Acting Relay, Model 24
Images are representations only.

244232ESSU

Series: Model 24 Snap Acting Relay Brand: Fairchild Industrial Products - by Rotork
Price
Request a Quote
Stock
Out of Stock
Request Information

Fairchild Snap Acting Relay, Model 24 Fairchild Snap Acting Relay, Model 24 Fairchild Snap Acting Relay, Model 24 Fairchild Snap Acting Relay, Model 24 Fairchild Snap Acting Relay, Model 24
  • Switch Position - Normal Closed
  • Pressure Range - psig: 0.5 to 30 (bar: 0.03 to 2, kPa: 3 to 200)
  • Port Size - 1/4" NPT
  • Port Thread - BSPT (Tapered)
  • Separate Supply to Pilot - Yes
  • Actuation Adjustment Means - Bias Adjustment
  • Exhaust Port - Tapped Exhaust
  • Elastomers - Buna-N & Dacron

Specifications

Brand

Actuator Type

  • Knob Adjust
  • Tamper-Proof

Air Consumption

  • Maximum

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPT Female
  • 1/4" BSPT Female
  • 3/8" BSPT Female

Elastomers

  • Buna-N on Dacron
  • FluoroCarbon (Viton)

Enclosure, Body Material

  • Aluminum

Exhaust Capacity - Relieving Units Only

  • 14 scfm
  • 14 scfm (23.8 m³/hour) at psig: 100 (bar: 7, kPa: 700) Drop
  • 23.8 m³/hour

Flow Capacity

  • 14 scfm (23.8 m³/hour)
  • 14 scfm (23.8 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply
  • 23.8 m³/hour (30)

Mounting

  • Panel Mount
  • Pipe

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 0.03 to 4
  • bar: 0.15 to 8
  • kPa: 0.63 to 800
  • psig: 0.5 to 120

Relief

  • Relieving

Sensitivity

  • 0.2" WC to 0.5 psig (Depending on Model)

Signal or Output Pressure - Maximum

  • bar: 8
  • kPa: 800
  • psig: 120

Supply Pressure - Maximum

  • bar: 8
  • kPa: 800
  • psig: 120

Supply Pressure Effect

  • psig: 10 (bar: 0.7, kPa: 70) Use Separate Supply Option If Inlet is less than psig: 10 (bar: 0.7, kPa: 70)

Trim Material

  • Stainless Steel
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust

Documentation

Data Sheets

Catalogs

Certifications & Approvals

Installation Instructions

View Product Series
