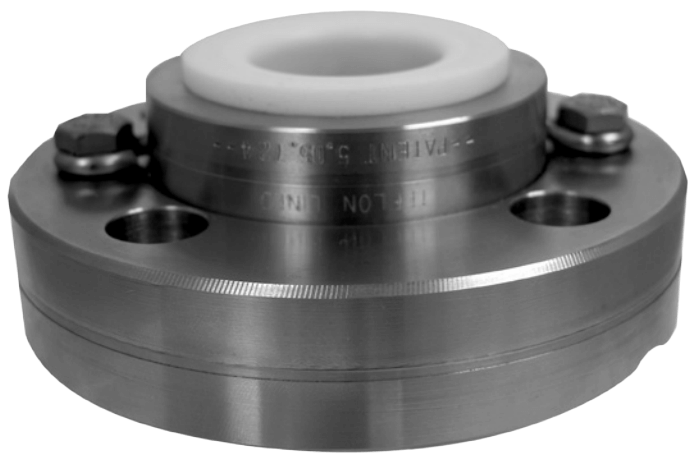

D44 Flanged Diaphragm Seal (Teflon)
Brand: Winters Instruments
Specifications
- "Continuous use" seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
- Various sizes and housing materials available
- ASME B40.100 compliant
Specifications
Brand
Applications
- Chemical Plants
- Oil Refineries
- Pulp & Paper Mills
- Used in Industrial Applications
Diaphragm Material
- Teflon for Increased Compatibility, Sensitivity & Versatility
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
- Carpenter 20
- Hastelloy® B & C
- Monel®
- PVC
- Tantalum
- Teflon
- Titanium
- Upper Housing: Nickel-Plated Carbon Steel
- Upper Housing: Stainless Steel (SST)
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - 150# (ASME B40.100)
- 1-1/2" (DN40) - 300# (ASME B40.100)
Flange Size - 1" (DN25)
- 1" (DN25) - 150# (ASME B40.100)
- 1" (DN25) - 300# (ASME B40.100)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME B40.100)
- 2" (DN50) - 300# (ASME B40.100)
Flange Type
- Raised Face (RF)
Gauge Connection
- 1/2" NPT Female
- 1/4" NPT Female
Pipe Connection
- 1" Pipe (DN 25)
- 1-1/2" Pipe (DN 40)
- 2" Pipe (DN 50)
Pressure Range
- bar: 0 to 69
- kPa: 0 to 6,900
- psi: 0 to 1,000
Temperature Range
- Maximum
Wetted Materials
- 316 Stainless Steel
- Teflon
