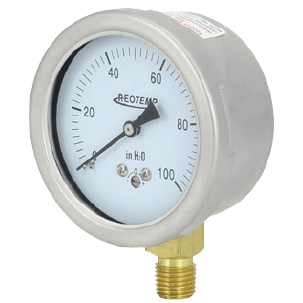

Series PC25 General Purpose Low Pressure Gauge
Brand: REOTEMP Instruments Corporation
REOTEMP’s Series PC25N2/S2 brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy. Examples include: exhaust systems and blowers. Features/Benefits:
- Sensitive Diaphragm/Capsule Mechanism
- Black Steel or Stainless Steel Case
- Easy-Access Zero Reset on Dial
- Economical Design for Non-Severe Service
Specifications
Accuracy
- 3-2-3%, ASME Grade B
Ambient Temperature Range
- -40° to 60° C (-40° to 140° F)
Approvals & Certifications
- ASME B40.100
Display
- White Aluminum Dial with Black Letters
Enclosure, Body Material
- 304 Stainless Steel
- Black Steel
Fill Material
- Dry
Lens
- Glass Lens
- Plastic Lens
Maximum System Pressure
- Momentary: 110% of Scale
- Stable: 100%
Mounting
- Bottom Mounting
- Bottom / Rear Flange Mounting
- Center Back "U" Clamp Mounting
- Center Back Mounting
- Center Back / Front Flange Mounting
NPT Connection
- 1/4" NPT Male
Pressure Range
- bar: 0 to 0.34
- Inches WC: 0 to 200
- kPa: 0 to 34.47
- psi: 0 to 5
Pressure Type
- Gauge
Process Temperature
- -40° to 60° C (-40° to 140° F)
Size
- Dial: 2.5" (63 mm)
Wetted Materials
- Copper Alloy
