Sigma Controls Digital Annunciator, ANN1
Images are representations only.

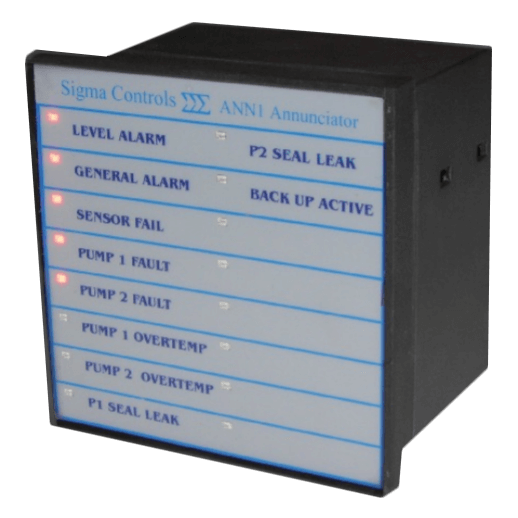

ANN1 Digital Annunciator

Brand: Sigma Controls, Inc.

The Sigma Control's ANN1 is a simple 'light box' annunciator well suited to PLC, dry contact or logic level inputs. Up to 16 bright LED's are turned on by the application of high or low voltage to their respective terminals.
Features
  • Simple digital design
  • 8 or 16 channel LED annunciators
  • 12-24 Vdc operation
  • Positive or Negative common
  • Low power consumption
  • 1/4 DIN panel mount or NEMA 4X enclosure

    • Specifications

    Brand

    Applications

    • Simple Alarming Applications

    Channels

    • 16-Channel LED Annunciator
    • 8-Channel LED Annunciator

    Electrical Connectors

    • Compression Screw Terminal, 16 x 16 AWG Wire

    Electrical Contacts

    • Normally Open Switches with External Power

    Enclosure, Body Material

    • ABS

    Environmental Protection

    • IP66
    • NEMA 4X

    Indication

    • High Intensity Red LED

    Input

    • 12-24 Vdc at 5-11 mA / Channel with Common Low or Common High

    Mounting

    • 1/4 DIN Panel Mount
