Reotemp Cooling Tower, STW & RTR
Images are representations only.

STW & RTR Cooling Tower

Brand: REOTEMP Instruments Corporation

Reotemp Cooling Tower, STW & RTR

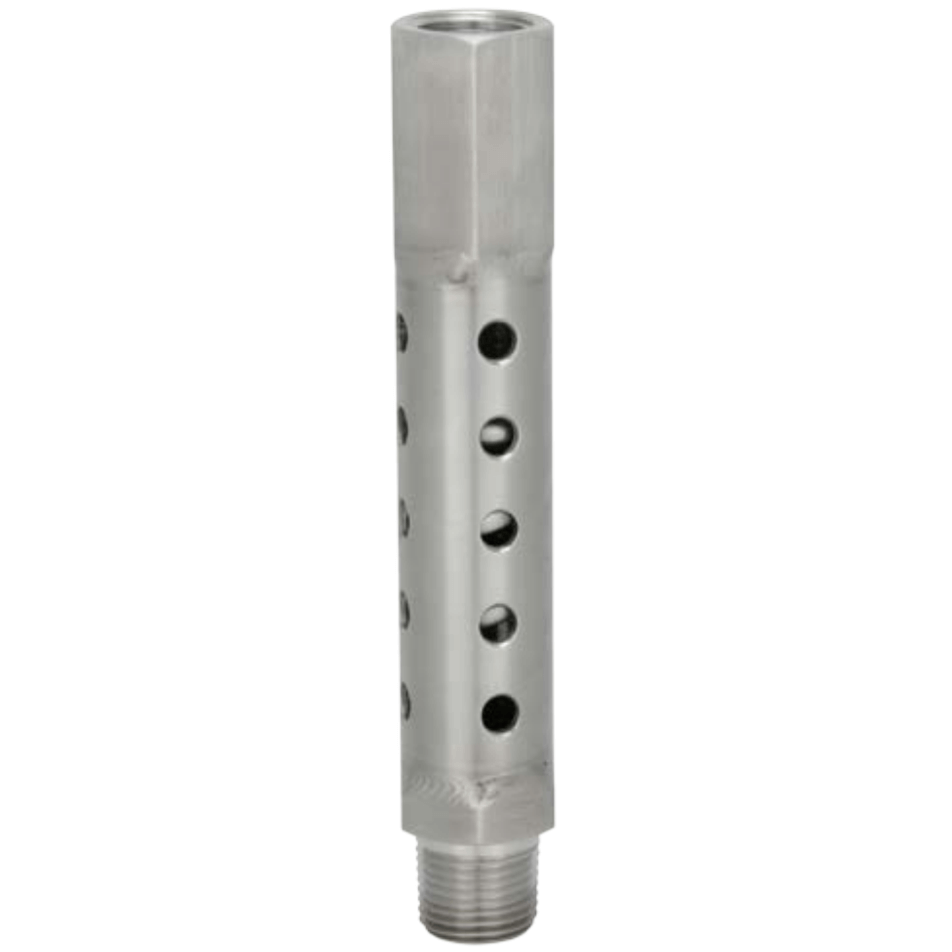

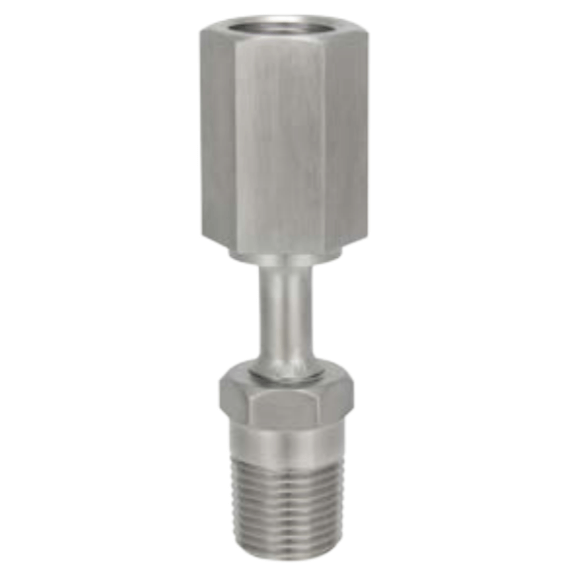

REOTEMP Cooling Towers protect pressure instruments from extremely hot process media without the pain and hassle of remote mounting the instrument. It is specifically designed to mount above a diaphragm seal or thread directly into the process. REOTEMP's unique design can reduce the process temperature by up to 700° F. Specifications:
  • Protects Pressure Instruments from High Process Temperatures
  • Reduces Temperature while Maintaining a Direct Mount
  • Fully Welded, 316 Stainless Steel Construction

    • Specifications

    Brand

    Ambient Temperature Range

    • 21° C (70° F) - Actual Temperature Performance Will Vary based on Process Application

    Applications

    • Cooling Towers
    • Process Media
    • without Clogging

    Materials of Construction

    • 304 Stainless Steel - Pigtail Siphons
    • 316 Stainless Steel - Pigtail Siphons
    • 316L Stainless Steel - Pigtail Siphons

    Maximum System Pressure

    • psi: 5,000 (kPa: 35,000, bar: 350)

    Mounting

    • Direct Mounting
    • Remote Mounting

    NPT Connection

    • 1/2" NPT Female
    • 1/2" NPT Male
    • 1/4" NPT Female
    • 1/4" NPT Male

    Pressure Type

    • Gauge

    Temperature Range

    • 93.33° to 426.67° C (200° to 800° F)
    • Maximum

    Tube Connection

    • 3 mm ID Tube

    Documentation
