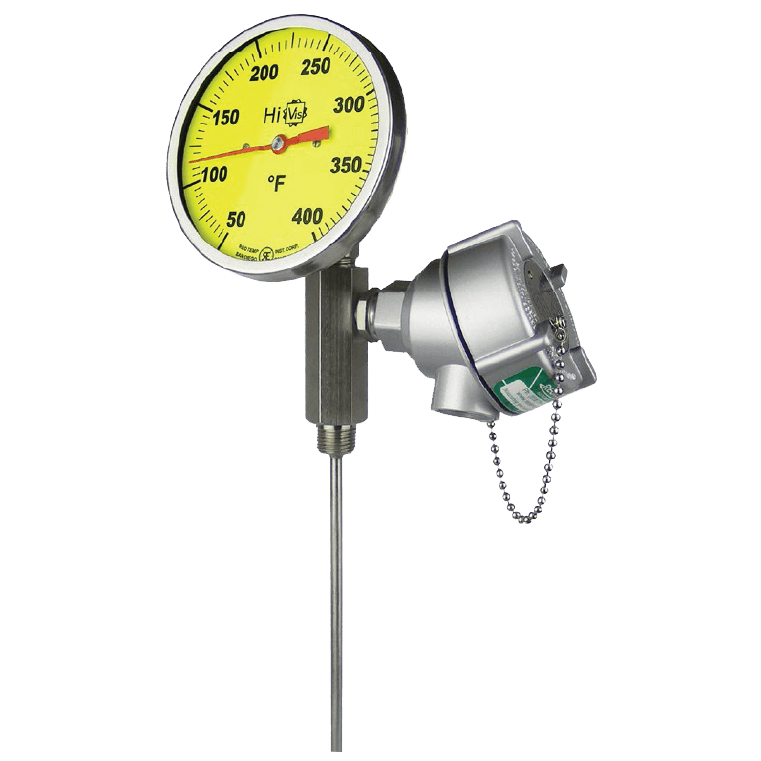

Dual Mode Thermometer
Brand: REOTEMP Instruments CorporationREOTEMP’s Dual Mode Thermometer (DMT) is a convenient, multi-purpose indicator for local and remote temperature monitoring. This rugged dual-sensor system puts two independent sensors in one thermowell, and allows easy tie-in to process controls. Both sensors are NIST traceable. Special sensor encapsulation and optional liquid filling make the DMT the most rugged, durable instrument of its kind. Features/Benefits:
- Allows independent local and remote reading (Up to 1,000° F) from one thermowell Redundant sensors for simple, effective calibration or spot checking without removing instrument from thermowell Easily installed in any standard thermowell Interchangeable with existing thermometer, RTD, or Thermocouple
Specifications
Accuracy
- ± 1.0% of Full Scale
- ± 2.2° C (± 3.96° F) or 0.75% (-200° to 1,260° C or -328° to 2300° F), whichever is greater
- 0.12% °C
Approvals & Certifications
- ASME B40.3
- ATEX
Electrical Connectors
- 4-20 mA HART Transmitter
- 4-20 mA Transmitter
- No Terminal Block, 6" Leads
- Terminal Block
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
Lens
- Acrylic Lens
- Glass Lens
- Laminated Safety Glass
- Polycarbonate Lens
- Tempered Safety Glass
Materials of Construction
- 316 Stainless Steel
- Aluminum
- Cast Iron
- Plastic
NPT Connection
- 1/2" NPT Male
Process Temperature
- -73° to 538° C (-100° to 1,000° F)
Sensor, Probe Type
- RTD
- Thermocouple (Dual, Grounded)
- Thermocouple (Dual, Ungrounded)
- Thermocouple (Single, Grounded)
- Thermocouple (Single, Ungrounded)
Size
- Dial: 3"
- Dial: 4" (100 mm)
- Dial: 5"
- Stem Diameter: 1/4"
- Stem Diameter: 3/8"
Stem Length
- 2.5" to 80" (6.35 to 203.2 cm)
Stem Material
- 304 Stainless Steel
Style
- Adjustable Angle
- Back Connect
