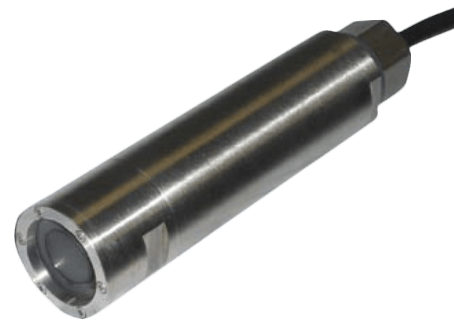

Series 6200MP Non Fouling Submersible Level Sensor
Brand: Sigma Controls, Inc.The Series 6200MP Microprocessor Based Level System is composed of a lower assembly sensor, submersible cable and optional meter/controller. The lower assembly sensor has a 316 Stainless Steel body, a 1.25 inch diameter Viton diaphragm and an isolated solid state piezo-resistive pressure transducer. The integral microprocessor based electronics provide active temperature compensation and significantly improved performance while offering a range of outputs including 4-20 mA and Modbus.
FeaturesSpecifications
Brand
Accuracy
- ± 0.2% of Span
Applications
- Process Applications
- Sludge & Sewage Applications
- Water & Wastewater
Cable Length
- 0 to 1,000 feet (0 to 300 meters)
Cable Material
- Polyurethane Jacketed Cable
Communication
- RS-485 Modbus
Compensated Temperature
- 0° to 50° C (32° to 122° F)
Diameter
- 1.25" (31.75 mm)
Diaphragm Material
- Viton
Electrical Connectors
- Attached 2-Wire 20 GA Direct Burial Polyurethane Jacketed Shielded Cable
- Conduit Adapter
Enclosure, Body Material
- 316 Stainless Steel
Fill Material
- Silicone 200
Input
- 7.8-36 Vdc
Materials of Construction
- Grommet: Neoprene
- Support Cable: Stainless Steel
Media
- Liquids
Mounting
- Pipe or Cable Support Bracket
Nut & Bolt Material
- Bolt: 300 Series Stainless Steel
O-Ring Material
- Buna
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0 to 2
- Feet WC: 0 to 70
- kPa: 0 to 206
- psi: 0 to 30
Pressure Type
- Gauge
Ring Material
- Clamp Ring: 316 Stainless Steel
Temperature Effect
- ± 0.2% of Output Span within Compensated Range
