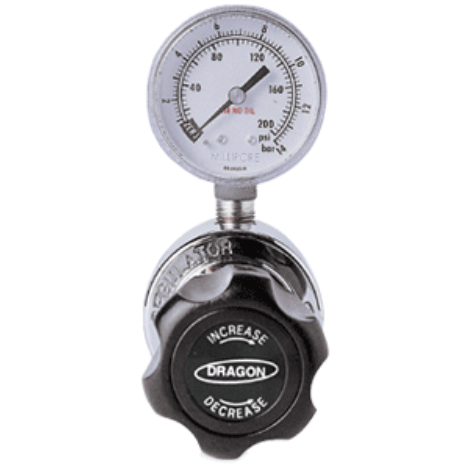

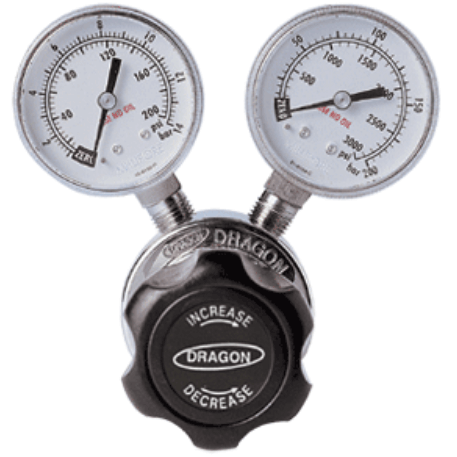

DR60 Series General Gas Regulator
Brand: DK-LOK Ltd.
DR60 Series are the industrial gas regulators, applicable to oxygen and non-corrosive gases. Available for general pipeworks and cylinder equipments. They are designed and produced for the customers to use them easily and expediently with ultimate safety. Special rubber is used for its internal diaphragm and inlet and outlet gauge are assembled as standard.
- Industrial gas regulator applicable for oxygen and non-corrosive gases
- Available for general pipeworks and cylinder equipment
- Designed and produced for safety and easy use
- Special rubber is used for internal diaphragm; inlet and outlet gauge are assembled as standard
Specifications
Brand
Diaphragm Material
- Synthetic Rubber
Enclosure, Body Material
- Nickel-Plated Forged Brass
NPT Connection
- 1/4" NPT Female
Pressure Range
- bar: 0.07 to 13.79
- kPa: 6.895 to 1,379
- psi: 1 to 200
Seat / Seal Material
- Valve Seat: Teflon
Supply Pressure - Maximum
- bar: 241
- kPa: 24,100
- psi: 3,500
