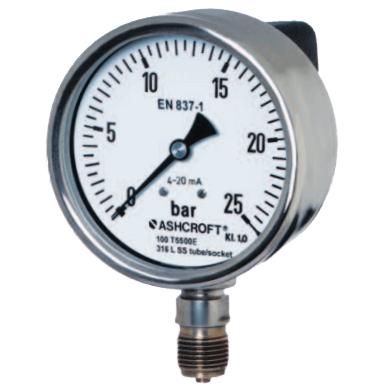

T5500E Process Gauge with Output
Brand: Ashcroft Inc.The Ashcroft® T5500E process gauge with output combines a pressure gauge and pressure transmitter; reducing costs for multiple instruments. This model can be integrated into safety and data acquisition systems or hazardous applications.
An ideal product when pressure measurement needs to be monitored or controlled.
Features- Integrated pressure transmitter
- Rugged stainless steel construction
- Welded socket and case
- IP65 protection
- 4-20 mA output
- Selection of measurement units (psi, bar, kilopascal)
Specifications
Brand
Accuracy
- 0.5% of Full Scale
Applications
- Chemical Processing
- Food & Beverage
- Power Plants
- Pulp & Paper
- Refineries
Compensated Temperature
- -20° to 70° C (-4° to 158° F)
Current
- Supply Current: 20 mA - Maximum
Enclosure, Body Material
- 304L Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP65
Isolation
- 350 Vac
- Case & Electrical Termination Isolation: > 1 MegaOhm at 50 Vdc
Lens
- Acrylic Lens
- Safety Glass
Materials of Construction
- Bourdon Tube & Socket: 316L Stainless Steel
- Dial (White-Coated) & Pointer (Black Micrometer): Aluminum
Movement
- 303 Stainless Steel
- 304 Stainless Steel
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Output
- 4-20 mA
Pressure Range
- bar: 0 to 1,379
- Inches Hg: -30 to 0
- kPa: 0 to 137,900
- psi: 0 to 20,000
Pressure Type
- Gauge
Process Temperature
- -25° to 85° C (-13° to 185° F)
Repeatability
- ≤ ± 0.3% Compound of Full Scale
Response Time
- ≤ 1 millisecond
Sensor, Probe Material
- Sensor/Probe Material as Sensor: 630 Stainless Steel (17-4 PH)
Size
- Dial: 4" (100 mm)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- 12-30 Vdc
Temperature Effect
- ± 0.3%/10 K from 0° to 50° C (32° to 122° F)
Termination
- DIN EN 175301-803 Angle Connector (Back-Mounted or Left-Side Mounted)
- Typical B Universal Box Cable Connector, Left-Side Mount
