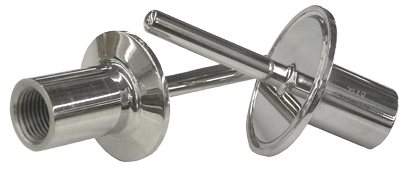

Sanitary Type Thermowell
Brand: REOTEMP Instruments Corporation- Each Stainless Steel Thermowell is die stamped with the type of material from which it is made.
- Provides Sanitary Protection for Temperature Probes
- All 316 Stainless Steel Construction
- Fast Installation and Removal
- Ideal for Food, Beverage, Biotech and Pharmaceutical Applications
- Finish Exceeds RA 32 maximum (finer finishes available)
- Exceeds 3A #4 Finish

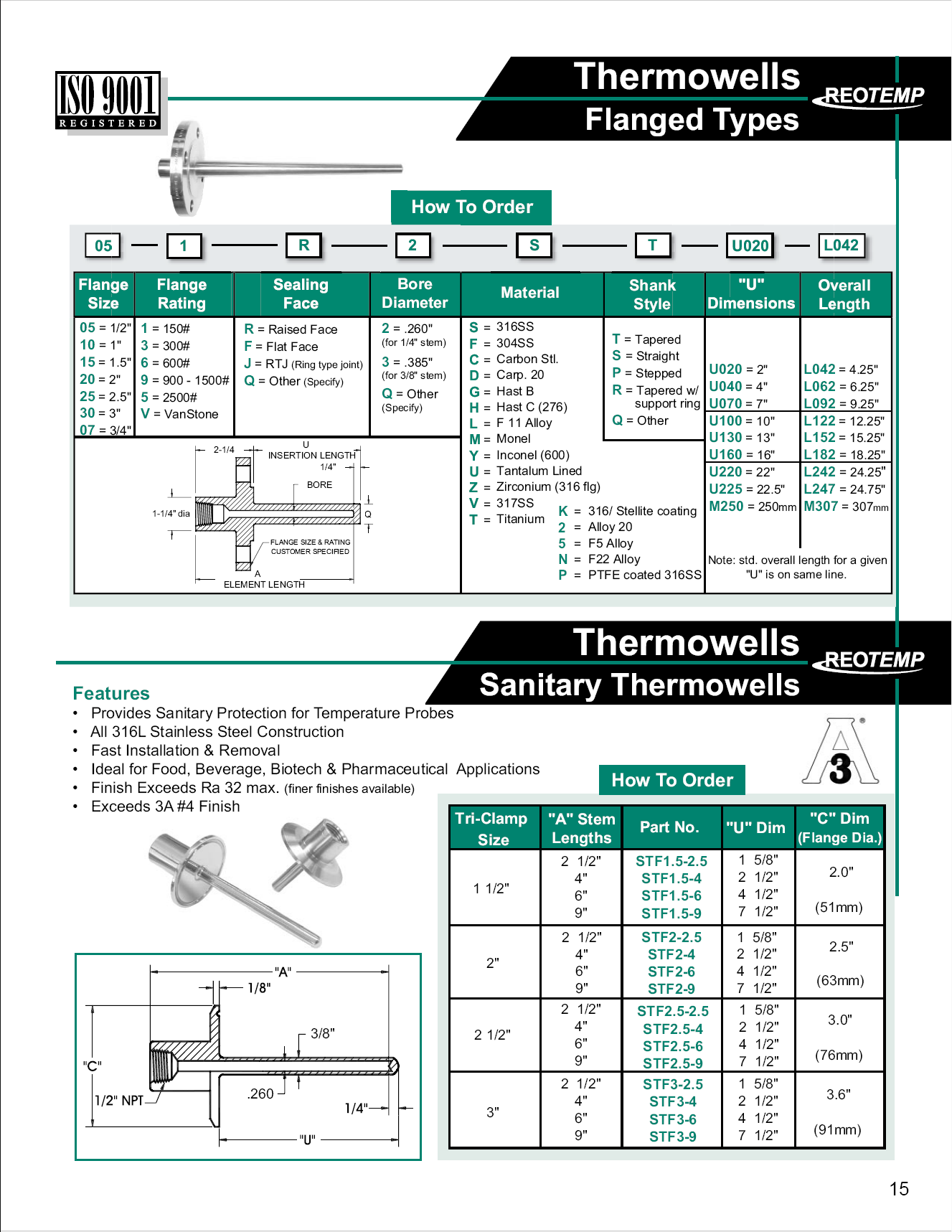

Specifications
Approvals & Certifications
- Material Certificate
- Mill Certificate
Bore Size
- 0.260" Bore, for 1/4" Diameter Element
- 0.385" Bore, for 3/8" Diameter Element
Enclosure Finish
- Special Surface Finish
Enclosure, Body Material
- 304 Stainless Steel
- 316L Stainless Steel
Options
- Internal Pressure Testing
- Stainless Steel Tags
Stem Length
- 2.5" (6.35 cm)
- 4" (10.2 cm)
- 6" (15.2 cm)
- 9" (22.9 cm)
Tri-Clamp Connection
- 1-1/2" Tri-Clamp®
- 2" Tri-Clamp®
- 2-1/2" Tri-Clamp®
- 3" Tri-Clamp®
