Sigma Controls Myriad Quadraplex Pump Controller, QPC LITE
Images are representations only.

Myriad QPC LITE Quadraplex Pump Controller

Brand: Sigma Controls, Inc.

Sigma Controls Myriad Quadraplex Pump Controller, QPC LITE

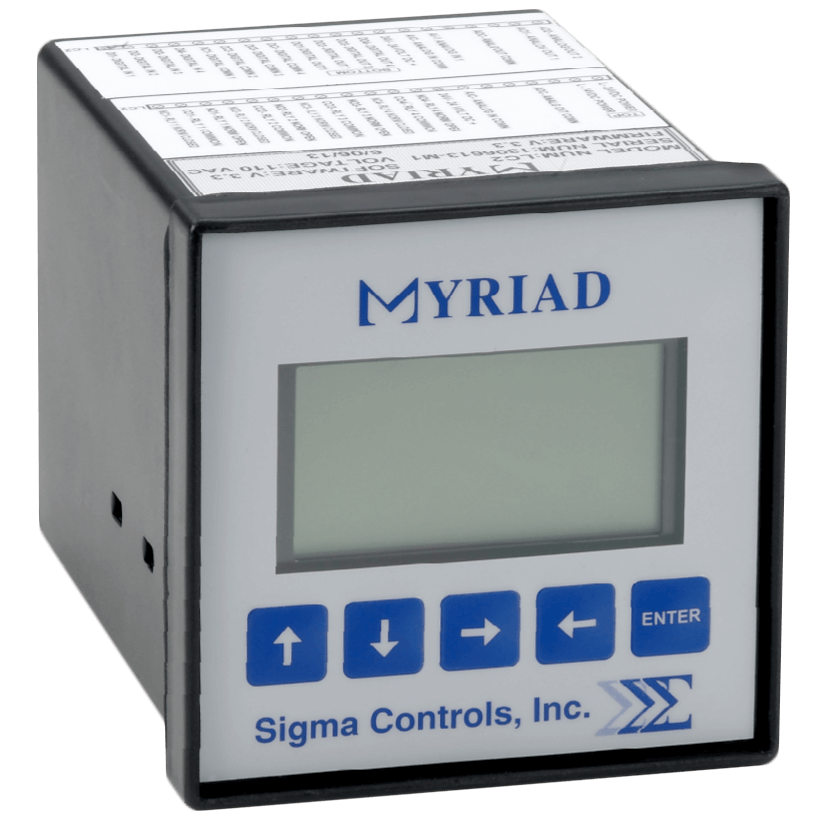

The Myriad QPC LITE ushers in a new generation of pump controllers. From the 1/4 DIN 4" x 4" housing with fully removable P.C board, to the 128 x 32 pixel bitmapped LCD display and simple user set up, the Myriad QPC LITE offers pump control and management for up to 4 pumps.
Features
  • Microprocessor based
  • Graphic LCD display
  • 5 Function keys
  • Isolated 24 Vdc sensor power
  • 4-20 mA, 1-5 V, 0-5 V, 0-10 Vdc input
  • 1 Analog input
  • 7 Digital inputs
  • 4 Analog outputs
  • 4 Relay outputs 5 A
  • 4 Digital outputs
  • Fully user programmable in english
  • 'MV Net' port RS-485 and user port
  • 'Pop Up' alarm screens

    • Specifications

    Brand

    Accuracy

    • 0.1% of Calibrated Span
    • Analog Input: ± 0.1%

    Communication

    • MV NET Port RS-485 & User Port

    Display

    • 128 x 32-bitmapped Graphical LCD Display

    Electrical Connectors

    • Removable Screw Terminal Block 28-16 AWG
    • Terminal Strip: Pluggable for Ease of Wiring 28-16 AWG

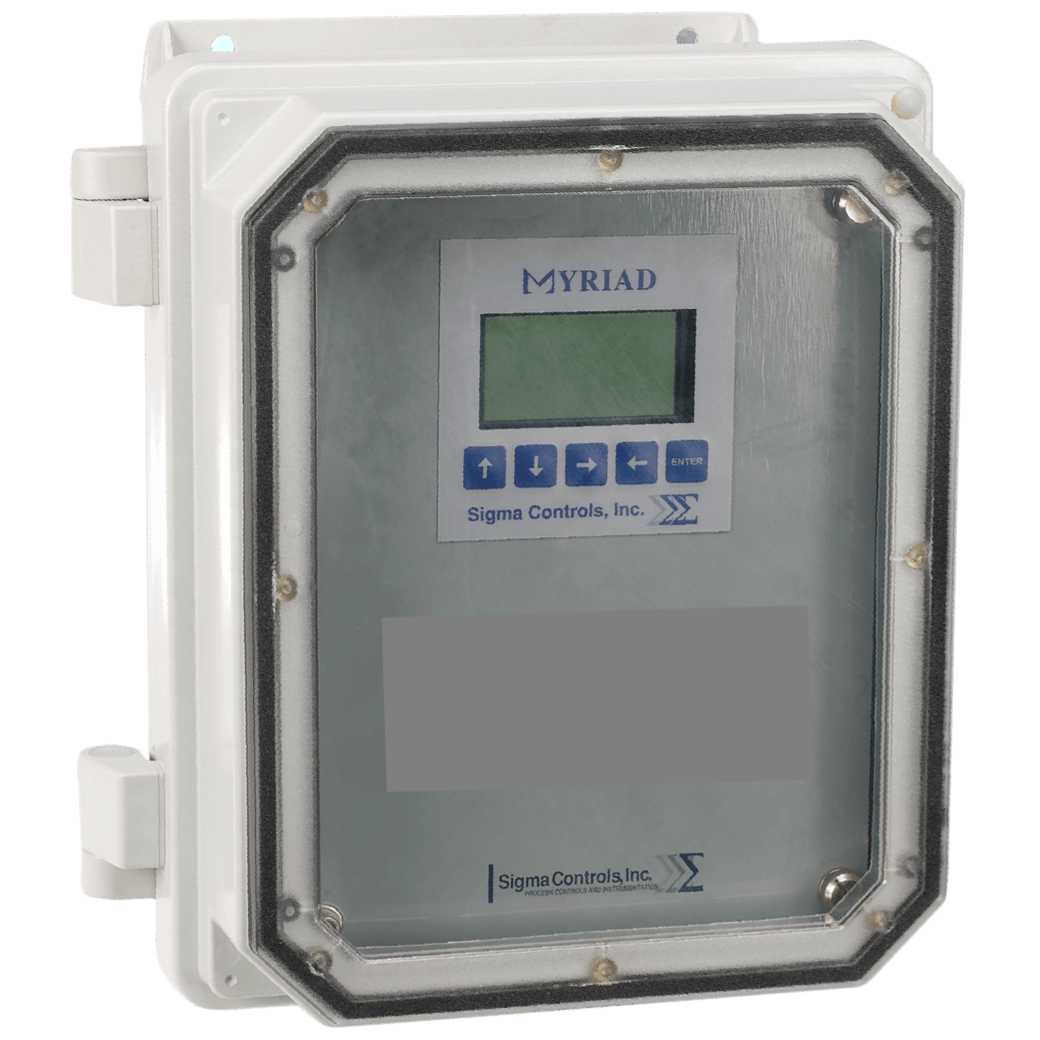

    Enclosure, Body Material

    • ABS Plastic

    Environmental Protection

    • IP10
    • IP66
    • NEMA 1
    • NEMA 4X

    Excitation Voltage

    • 24 Vdc Excitation Output at 100 mA

    Humidity

    • 0 to 90% Relative Humidity, Non-Condensing

    Input

    • Analog: 0-10 Vdc
    • Analog: 0-5 V
    • Analog: 1-5 V
    • Analog: 4-20 mA
    • Digital: 10-30 Vdc

    Input Impedance

    • Current: 100 ohms
    • Voltage: 100 KiloOhms

    Mounting

    • 1/4 DIN Panel Mount
    • 1/4 DIN Rail Mounting

    Operating Temperature

    • 0° to 65° C (32° to 150° F)

    Output

    • Analog: 0-10 V (Requires A Resistor)
    • Analog: 0-20 mA
    • Analog: 0-5 V (Requires A Resistor)
    • Analog: 4-20 mA

    Power

    • Loop Power: 24 Vdc Regulated Output at 100 mA - Maximum

    Power Requirement

    • 120-230 Vac

    Relay Output

    • 5 A

    Storage Temperature

    • -40° to 80° C (-40° to 176° F)

    Switch Type

    • SPDT, Form C
