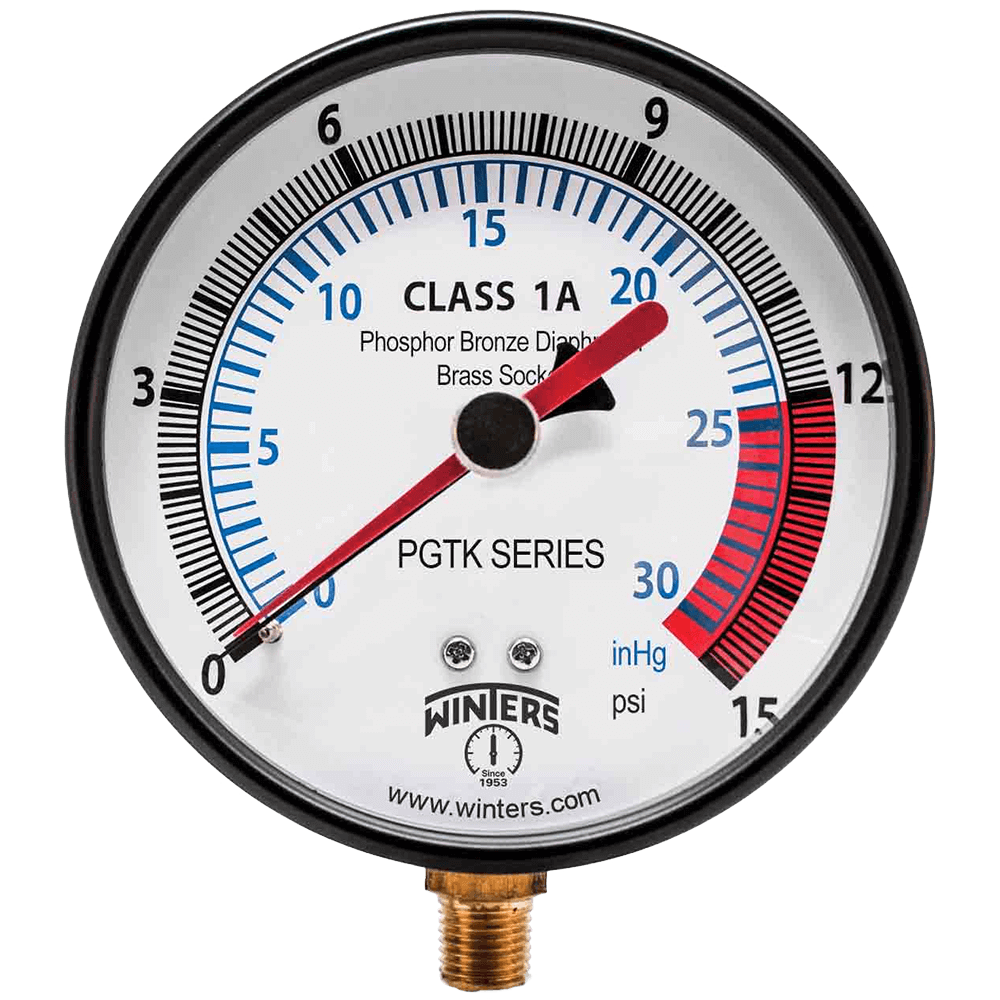

PGTK Gas Line Test Kit
Brand: Winters Instruments
Specifications
- Highly accurate reading of low pressures
- Brass wetted parts
- Adjustable red set pointer
- Built in over pressure protection
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
Specifications
Brand
Accuracy
- ± 1% Grade 1A
Ambient Temperature Range
- -40° to 65° C (-40° to 150° F)
Applications
- Air Compressors
- Air Filters
- Gas Burners
- Low Pressure Pumps
- Ovens
- Regulators
- Respirators
- Suitable for Measuring Low Pressure Gas Media
- Used to Measure Natural Gas Pressure as well as Air Flow Indication & Leak Detection
Approvals & Certifications
- CRN
Cap Material
- Plastic
Diaphragm Material
- Phosphor Bronze
Enclosure, Body Material
- Steel
Environmental Protection
- IP52
Gauge Connection
- 1/4" NPT Male
Lens
- Polycarbonate Lens with Adjustable Red Set Pointer
Materials of Construction
- Dial (White Dial with Black, Blue & Red Markings) & Pointer (Anodized Black): Aluminum
- Socket: Brass
Metric Outlet

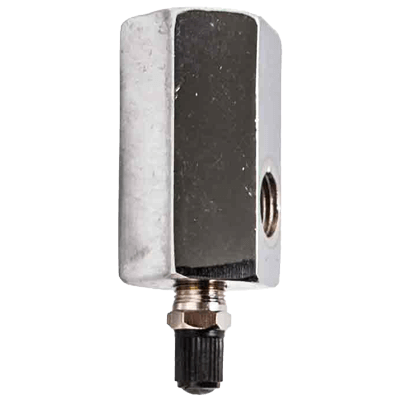

- M8 x 0.8 Male Chrome Plated Test Block
Movement
- Brass
NPT Inlet
- 3/4" NPT Female
Operating Pressure
- 60% of Full Scale Value (Fluctuating)
- 75% of Full Scale Value (Static)
Pressure Range
- Inches Hg: 0 to 30
- psi: 0 to 15 (kPa: 0 to 103.4, bar: 0 to 1.034)
Process Temperature
- -40° to 65° C (-40° to 150° F)
Ring Material
- Steel
Size
- Dial: 4" (100 mm)
Wetted Materials
- Brass
