Reotemp Gauge, MS8
Images are representations only.

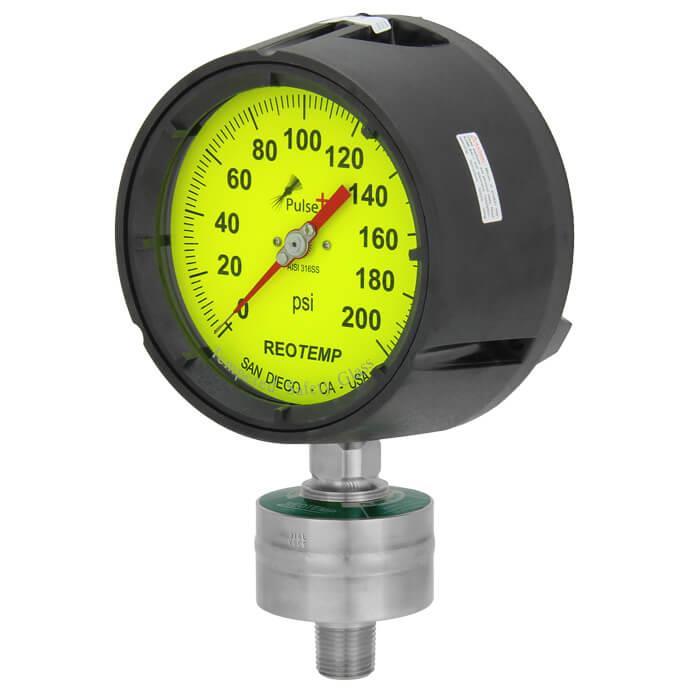

MS8 Gauge

Brand: REOTEMP Instruments Corporation

REOTEMP’s All-Welded Pressure Seal Gauge offers superior diaphragm seal safety and performance at an economical price. Combined with a gauge or transmitter, the tamper-resistant all-welded diaphragm seal reduces potential leak points, making it ideal for installations where process integrity and worker safety are paramount. Combined with PulsePlus protection, the Series MS8 can potentially triple the life of your gauge or transmitter.
Features
  • Increases the Life of the Gauge by Up to 3 Times
  • Reduce/Eliminate Fugitive Emissions
  • Available Up to 5,000 psi
  • Eliminate Potential Leak Points
  • Tamper Resistant
  • Compliant to NACE MR0175, MR0103

    • Specifications

    Brand

    Accuracy

    • 0.5% - Gauge Accuracy

    Approvals & Certifications

    • NACE

    Diaphragm Material

    • 316L Stainless Steel
    • Hastelloy® C-276

    Enclosure, Body Material

    • 316 Stainless Steel - Upper Housing

    Mounting

    • Direct Mounting
    • Remote Mounting

    NPT Connection

    • 1" NPT Male
    • 1/2" NPT Female
    • 1/2" NPT Male
    • 1/4" NPT Female
    • 1/4" NPT Male
    • 3/4" NPT Male

    Pressure Range

    • bar: 0 to 3,447
    • Inches Hg: -30 to 0
    • kPa: 0 to 3,44,700
    • psi: 0 to 50,000

    Pressure Type

    • Compound Pressure
    • Gauge
    • Vacuum

    Process Connection Material

    • 316L Stainless Steel
    • Hastelloy® C-276

    Temperature Range

    • -40° to 371° C (-40° to 700° F)

    Wetted Materials

    • 316L Stainless Steel
    • Hastelloy® C-276
