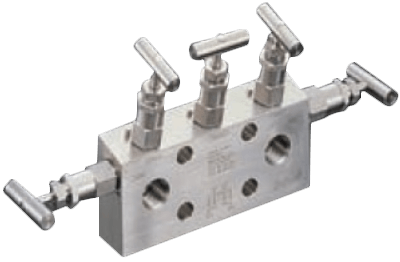

V56 Series Instrument Manifold
Brand: DK-LOK Ltd.Features:
- Non-rotating stem tip at closure for long-life and leak-tight shutoff
- Chevron PTFE packing design provides far improved sealing integrity
- Packing below stem threads is to isolate threads from system fluid and lubricant washout
- Packing bolt permits stem packing adjustment
- Standard Lock plate ensures the valve fastened to the body even excessive operating torque is applied
- One piece body construction provides strength
- Burr-free internal surface
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- RWTÜV
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
Instrument Connection
- 1/2" NPT Female
NPT Connection
- 3/4" NPT Male
NPT Inlet
- 1/2" NPT Female
Packing Material
- Grafoil
- PTFE
