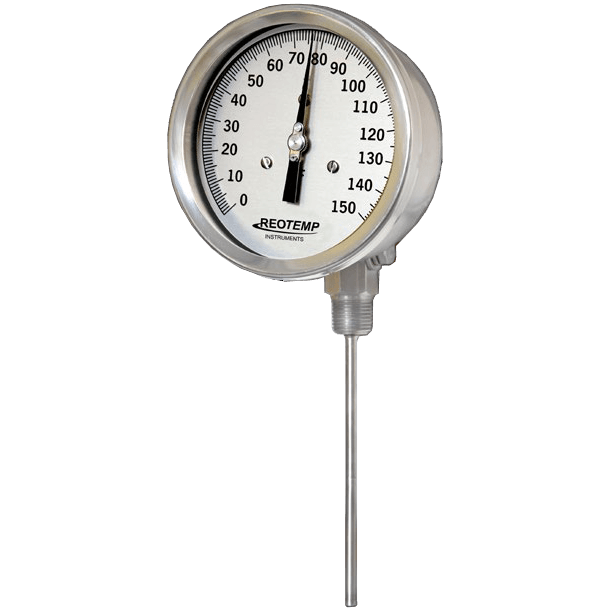

Reotemp Direct Drive Gas and Liquid Filled Thermometer
Images are representations only.

45GR/45LR Direct Drive Gas & Liquid Filled Thermometer

Brand: REOTEMP Instruments Corporation

REOTEMP’s Rugged Direct Drive System makes our 45GR and 45LR the right choice for temperature indication in heavy-duty or high vibration applications. The all-stainless steel case and internals, along with the direct drive system, result in superior instrument life in severe environments. Features/Benefits:
  • Accuracy ±1% of Range Span
  • Can handle a wide temperature range up to 649° C (1,200° F)
  • Heavy Duty Vibration and Shock Resistant
  • Stainless Steel Sealed Construction
  • Adjustable to any angle

Specifications

Brand

Accuracy

  • ± 1% of Range Span

Actuator Type

  • Stainless Steel Direct Drive Bourdon Coil

Enclosure, Body Material

  • Stainless Steel

Lens

  • Gasket Sealed Glass
  • Polycarbonate Lens

Process Temperature

  • -200° to 600° C (-350° to 1,200° F)

Stem Length

  • 12" (30.5 cm)
  • 15" (38.1 cm)
  • 18" (45.7 cm)
  • 24" (61 cm)
  • 4" (10.2 cm)
  • 6" (15.2 cm)
  • 9" (22.9 cm)
