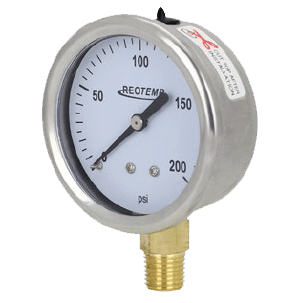

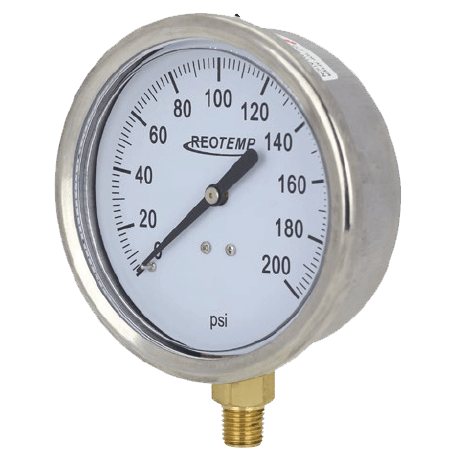

Series PG 25/40C Industrial Stainless/Brass Gauge
Brand: REOTEMP Instruments Corporation
REOTEMP’s Series PG gauges are an economical choice where ambient corrosion and vibration are of concern. The stainless steel case and ring offer excellent corrosion resistance, and is fillable for applications with vibration. It is suitable for all fluids compatible with copper alloys. Features/Benefits:
- Stainless Steel Case
- Copper Alloy Wetted Parts
- Field Fillable Case
- Convenient Panel Mounting Adapters
Specifications
Accuracy
- 2 to 1 to 2%, ASME Grade A
- 3-2-3%, ASME Grade B
Ambient Temperature Range
- -40° to 60° C (-40° to 140° F)
Approvals & Certifications
- ASME B40.100
Display
- White Aluminum Dial with Black Letters
Enclosure, Body Material
- 304 Stainless Steel
Fill Material
- Dry
- Glycerin
- Glycerin & Water
Lens
- Glass Lens
- Plastic Lens
Maximum System Pressure
- Momentary: 110% of Scale
- Stable: 100%
Mounting
- Bottom Mounting
- Bottom / Rear Flange Mounting
- Center Back "U" Clamp Mounting
- Center Back Mounting
- Center Back / Front Flange Mounting
- Panel Mounting Adapters
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Pressure Range
- bar: 0 to 68.97
- kPa: 0 to 6,895
- psi: 0 to 1,000
Pressure Type
- Gauge
Process Temperature
- -40° to 60° C (-40° to 140° F)
Size
- Dial: 2.5" (63 mm)
- Dial: 4" (100 mm)
Wetted Materials
- Copper Alloy
