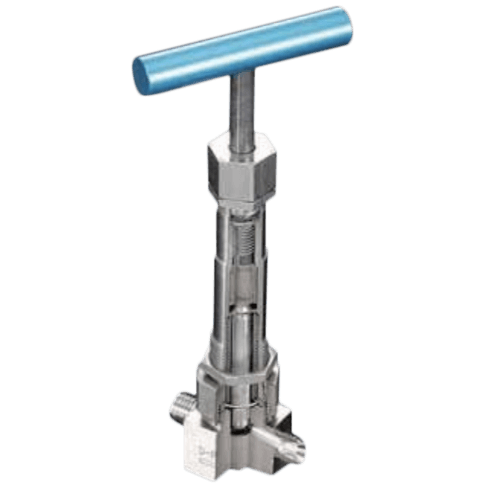

V13W Series Bellows Valve
Brand: DK-LOK Ltd.V13W Series Bellows Valve offers the most difficult fluid handling applications. This design with the secondary sealing system fits to the need for a safe and reliable system. Applications include cryogenic to high temperatures, high pressure to vacuum in power plants, instrumentation, panels, and critical sampling system for toxic, radioactive, and hazardous fluids.
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- RWTÜV
Enclosure, Body Material
- 316 Stainless Steel - A479
Packing Material
- Grafoil
- PTFE
Pressure Range
- bar: 0 to 172
- kPa: 0 to 17,236
- psig: 0 to 2,500
Seat / Seal Material
- Low Seal O-Ring: 316 Stainless Steel
Tube Inlet
- 1/2" Tube Butt Weld, 1/2" Tube Socket Weld
- 1/4" Tube Socket Weld
- 3/4" Tube Butt Weld
- 3/8" Tube Butt Weld, 3/8" Tube Socket Weld
Tube Outlet
- 1/2" Tube Butt Weld, 1/2" Tube Socket Weld
- 1/4" Tube Socket Weld
- 3/4" Tube Butt Weld
- 3/8" Tube Butt Weld, 3/8" Tube Socket Weld
