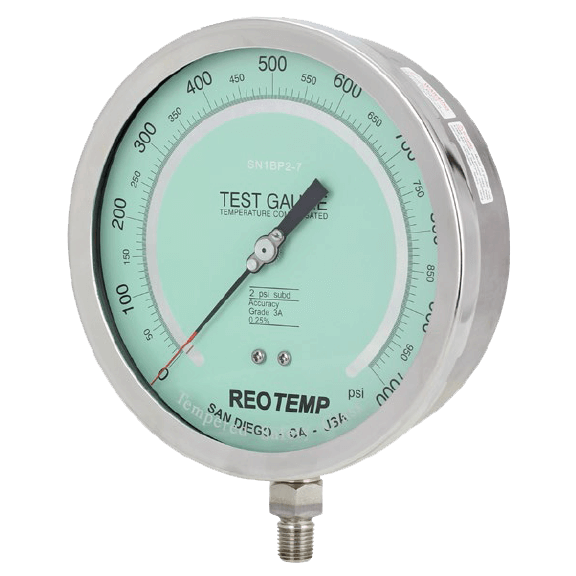

Series PL60 Industrial 6" Test Gauge
Brand: REOTEMP Instruments CorporationREOTEMP’s Series PL60 test gauge is designed for use in laboratories, testing or calibration facilities, or wherever accuracy and repeatability are of prime importance. Rugged, all-welded stainless steel construction makes this gauge suitable for almost any test application. Reading error due to parallax is eliminated by use of a knife-edge pointer and mirror dial. Features/Benefits:
- Stainless Steel Case & Bayonet Ring
- Anti-Parallax, Mirror Dial
- 10 Point NIST Traceable Calibration Certificate Included
Specifications
Accuracy
- 0.25%, Grade 3A
Ambient Temperature Range
- -40° to 65° C (-40° to 150° F)
Approvals & Certifications
- ASME B40.100
Display
- Aluminum with Mirror Band
Enclosure, Body Material
- 304 Stainless Steel
Fill Material
- Dry
Lens
- Laminated Safety Glass
- Plastic Lens
- Tempered Safety Glass
Mounting
- Bottom Mounting
- Bottom / Rear Flange Mounting
- Lower Back "U" Clamp
- Lower Back Mounting
- Lower Back/Front Flange
- Lower Back/Rear Flange
NACE & NIST
- NIST
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Pressure Range
- -30" Hg 0 to 5,000 psi (bar: 0 to 344.7, kPa: 0 to 34,473)
- bar: 0 to 344.7
- Inches Hg: -30 to 0
- kpa: 0 to 34,473.8
- psi: 0 to 5,000
Pressure Type
- Compound (Vacuum & Gauge Pressure)
Process Temperature
- -40° to 65° C (-40° to 150° F)
Size
- Dial Size: 6"
Wetted Materials
- 316 Stainless Steel
