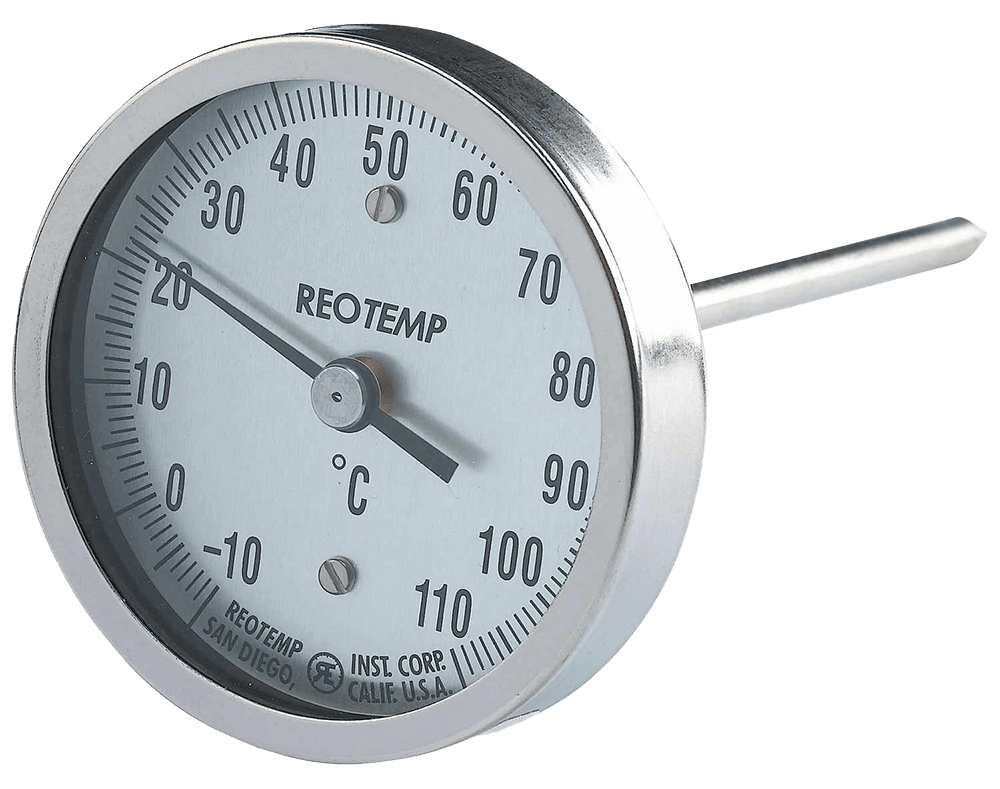

OEM Dial Bimetal Thermometer
Brand: REOTEMP Instruments CorporationREOTEMP’s OEM Thermometers are the perfect choice for equipment with limited space that requires a rugged, dependable, and economical temperature sensor. These thermometers are also available with a wide variety of mounting threads. Features/Benefits:
- Made to ASME B40.3 Specifications
- Accuracy ± 1% Full Scale. (ASME B40.3)
- All-Stainless Steel Construction
- Standard and Custom Stem Lengths
- Standard External Reset
- OEM Logo Dials/Custom Dial
Specifications
Accuracy
- ± 1% of Full Scale (ASME B40.3 Grade A)
Approvals & Certifications
- ASME B40.3
Enclosure, Body Material
- 316 Stainless Steel
- Stainless Steel
Environmental Protection
- IP67
- NEMA 6 / IP67
Lens
- Acrylic Lens
- Glass Lens
- Polycarbonate Lens
Materials of Construction
- 300 Series Stainless Steel
- 316 Stainless Steel
- Aluminum
NPT Connection
- 1/2" NPT Female
- 1/4" NPT Female
- 1/8" NPT Female
- 3/8" NPT Female
Process Connection - Other
- Plain Bushing, Hex Reset Bushing
Process Temperature
- -40° to 500° C (-40° to 1,000° F)
Size
- Dial: 1-11/16"
- Dial: 1-5/32"
- Dial: 2-3/8"
- Stem Diameter: 1/4"
- Stem Diameter: 5/16"
Stem Length
- 2.5" to 80" (6.35 to 203.2 cm)
UNF/UNC Connection
- 3/8"-24 UNF Male
