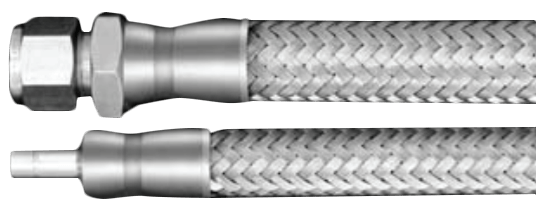

MFH Series High-Pressure Flexible Metal Hose
Brand: DK-LOK Ltd.Features:
- High pressure application up to psig: 3,600 (kPa: 24,821, bar: 248.2) with 316 stainless steel construction
- High temperature application up to 454° C (850° F)
- Wide choices of end connections of DK-Lok tube port, DK-Lok tube stub adapter, swivel 37 degree female, male and female NPT/ISO tapered thread
- Products type approved by DNV: Certificate No. P-12877
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT, NS
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
BSP Connection
- 1/2" BSPT Male
- 1/4" BSPT Male
Enclosure, Body Material
- 316L Stainless Steel
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male
- 1/4" NPT Female
- 1/4" NPT Male
- 3/8" NPT Female
- 3/8" NPT Male
SAE Connection
- 1/2" SAE Female J514
- 1/4" SAE Female J514
- 3/8" SAE Female J514
Tube Connection
- 1/2" O.D. Tube
- 1/4" O.D. Tube
- 3/8" O.D. Tube
