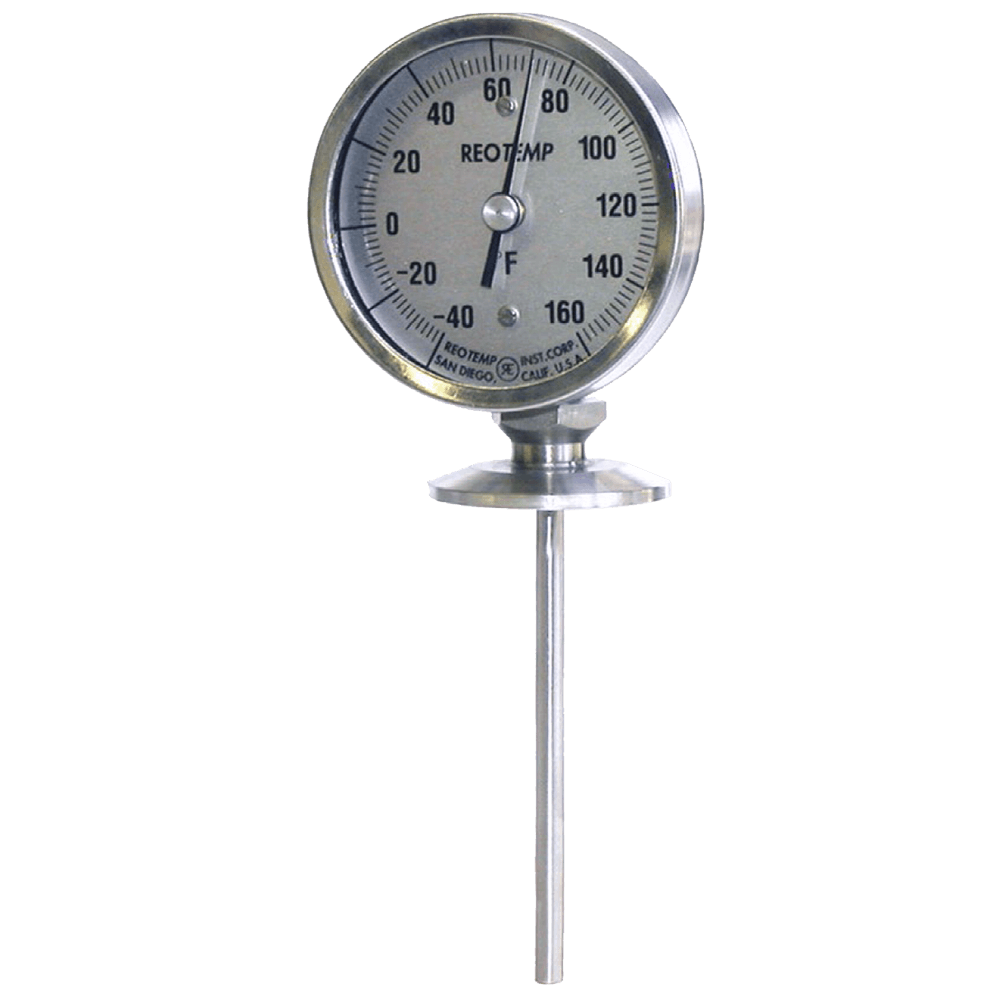

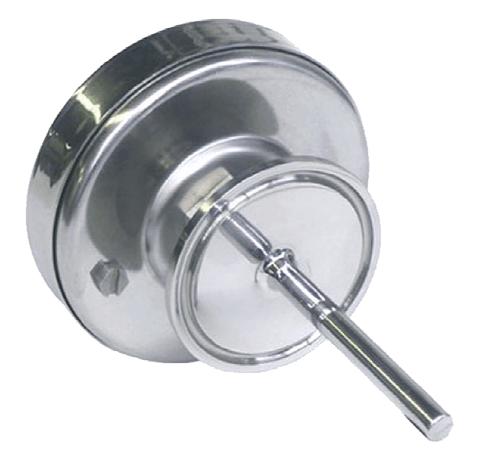

Sanitary Bimetal Thermometer
Brand: REOTEMP Instruments Corporation
REOTEMP’s Sanitary Bimetal Thermometers are specially designed for direct insertion into sanitary process applications when a standard thermowell is not specified or the process environment is not exposed to pressure. Sanitary thermometers are ideal for the food, beverage and pharmaceutical industries. Features/Benefits:
- Made to ASME B40.3 Specifications
- Accuracy ± 1% Full Scale. (ASME B40.3)
- All-Stainless Construction
- Hermetically Sealed (ASME B40.3)
- Silicone Fillable for Vibration
- Standard and Custom Stem Lengths
- Standard External Reset
- Tri-Clamp® Design for Fast Installation and Removal
- 3A Sanitary Standards
- 3A Conformance Certificate Included
- OEM Logo Dials/Custom Dials
Specifications
Accuracy
- ± 1% of Full Scale (ASME B40.3 Grade A)
Approvals & Certifications
- ASME
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP67
- NEMA 6 / IP67
Fill Material
- Dry
- Silicone
Lens
- Acrylic Lens
- Glass Lens
- Polycarbonate Lens
- Tempered Safety Glass
Materials of Construction
- All Stainless Steel Construction
Process Temperature
- -40° to 500° C (-40° to 1,000° F)
Size
- Dial: 3"
- Dial: 4" (100 mm)
- Dial: 5"
- Stem Diameter: 1/4"
- Stem Diameter: 3/8"
Stem Length
- 2" to 80" (5.08 to 203.2 cm)
Tri-Clamp Connection
- 1-1/2" Tri-Clamp®
- 2" Tri-Clamp®
- 2-1/2" Tri-Clamp®
- 3" Tri-Clamp®
- 3/4" Tri-Clamp®
