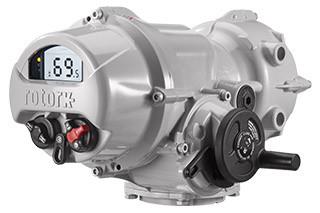

Rotork IQTF Range - Electric Full-Turn Modulating Actuator

Brand: Rotork plc

IQTF electric modulating actuators are capable of multi-turn, rising output, linear output and direct rotary output. Includes special fast switching control inputs for hardwired control.

Electrical Supply:
  • 3-phase
  • 1-phase
  • DC
Actuator Type:
  • Full turn
  • Isolating / regulating duty and modulating duty
Duty Cycle:
  • Up to 1,800 starts per hour
  • S4 / Class C
Torque Range:
  • A = Torque range 20 to 250 Nm (14.8 to 184.5 lbf.ft)
  • B = Torque range 20 to 3,000 Nm (14.8 to 2,214 lbf.ft)
  • L = Thrust range 7.5 to 75.8 kN (1,693 to 17,036 lbf)

Specifications

Brand

Actuator Torque

  • 15 to 2,214 Lbsf.ft (20 to 3,000 Nm)
  • Modulating Torque: 18.5 to 738 Lbsf.ft (25 to 1,000 Nm)

Power Supply

  • 1-Phase: 100-240 V, 50/60 Hz
  • 24 Vdc
  • 3-Phase: 200-690 V, 50/60 Hz

Enclosure

  • IP66/68
  • NEMA 4
  • NEMA 4X
  • NEMA 6

Features

  • Manual Override

Communication

  • DeviceNet
  • FOUNDATION Fieldbus
  • HART
  • Modbus
  • Pakscan
  • Profibus

Weights

  • 49 to 86 Lbs (22 to 39 kg)

Electric Connection

  • 4 x ASA NPT 0.75"
  • 4 x M25
  • 4 x PG 16

Operating Temperature

  • Low: -58° to 104° F (-50° to 40° C)
  • Standard: -22° to 158° F (-30° to 70° C)

Vibration

  • 1g RMS within 10 to 1,000 Hz

Approvals & Certifications

  • SIL2/3

Shock

  • 5g Peak Acceleration

Approvals & Certifications

  • ATEX II 2GD C
  • CSA
  • EAC
  • EMC
  • FM3610
  • Lloyd
