Eurotherm Loop Powered Multi-Channel Isolator, Q500
Images are representations only.

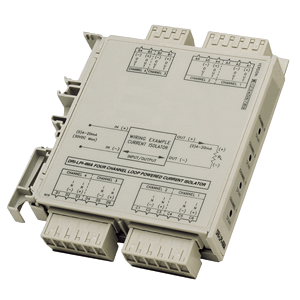

Q500 Loop Powered Multi-Channel Isolator

Brand: Eurotherm

The Q500 is a DIN rail mount, loop-powered isolator with single, dual or quadrature (4) channel capability. Each channel accepts a 0 to 20 mA or 4-20 mA input and outputs a proportional 0 to 20 mA or 4-20 mA signal. The Q500 provides 1,800 Vdc signal isolation from input to output and channel to channel.
Features
  • Up to 4 loop isolators in a single package
  • Prevents ground loops
  • High density DIN rail mounting
  • SnapLoc plug-in terminals
  • ASIC Technology

Specifications

Brand

Approvals & Certifications

  • CSA C22.2 - File No. LR42272
  • IEC 801-2
  • UL (C,US)
  • UL 508 (File No. E99775)

Documentation
