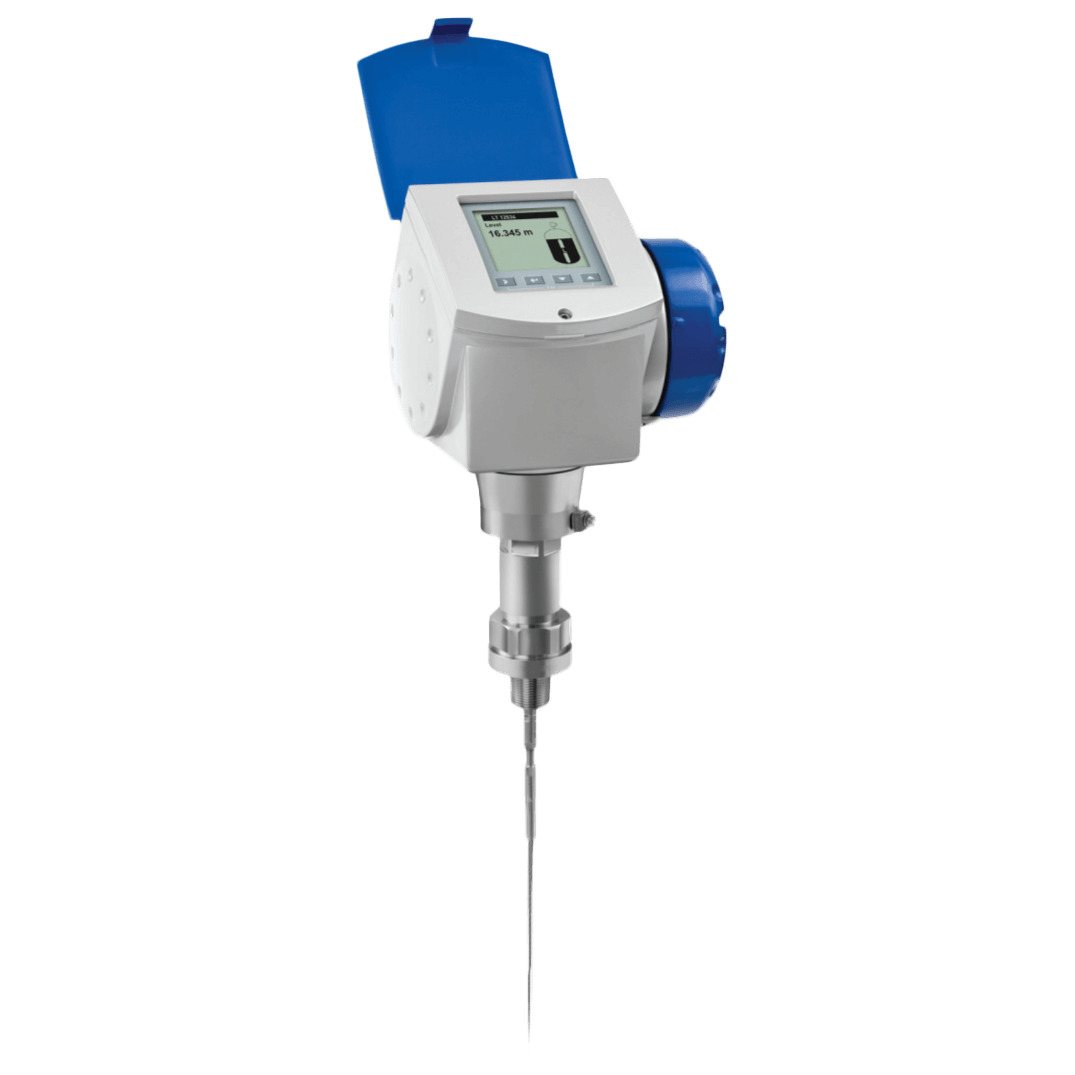

Krohne Guided Radar (TDR) Level Transmitter, OPTIFLEX 1300 C
Images are representations only.

OPTIFLEX 1300 C Guided Radar (TDR) Level Transmitter

Brand: Krohne

This device is a Guided Radar (TDR) Level Transmitter for measuring distance, level, interface, level and interface, volume and mass. It has higher signal dynamics and a sharper pulse than conventional TDR devices and therefore better reproducibility and accuracy. A variant with a remote converter can be mounted up to 14.5 m / 47.6 ft from the probe. The device can operate at very low and very high process temperatures as long as the process connection temperature limits are observed.

Features:
  • Displays level and interface
  • PACT ware and DTMs included as standard
  • Optional second current output – used for displaying interface measurements, for example
  • High-pressure and high-temperature versions
  • Optimal process safety (with Metaglas dual process sealing system for dangerous products)
  • Display in 9 languages: even in Chinese, Japanese and Russian
  • Available in stainless steel and HASTELLOY C-22. Other materials are available on request: monel, tantalum, titanium, duplex etc.
  • Angled single cable and rod probes are available on request for installation in tanks which contain obstructions

Specifications

Brand

Approvals & Certifications

  • ATEX II 1 G Ex Ia IIC T6 Ga + II 1 D Ex Ia IIIC Da, II 1/2 G Ex Ia/d IIC T6 Ga/Gb + II 1/2 D Ex Ia Tb IIIC Da/Db, II 1 G Ex Ia IIC T6 Ga + II 1 D Ex Ia IIIC Da + WHG, II 1/2 G Ex Ia/d IIC T6 Ga/Gb + II 1/2 D Ex Ia Tb IIIC Da/Db + WHG, II 3 G Ex NA IIC T6
  • CE
  • CEPEL
  • CRN
  • CSA IS CL I, II, III Division 1 GPS A-G + CL I Zone 0 Ex Ia IIC T6, XP-AIS, DIP, NI CL I, II, III Division 2 GPS A-G + CL I Zone 1, Zone 2 Ex D, Ex NA IIC T6
  • DNV
  • EAC (Russia, Belarus, Kazakhstan)
  • EMC Directive 2004/108/EC in Conjunction with EN 61326-1
  • FM IS CL I/II/III Division 1 GPS AG + CL I Zone 0 Ex Ia IIC T6, XP-AIS/DIP/NI CL I/II/III Division 1, GPS A-G + CL I Zone 1/Zone 2 Ex D[ia]/Ex NA[ia] IIC T6
  • IEC Ex Ex Ia IIC T6 Ga + Ex Ia IIIC Da, Ex Ia/d IIC T6 Ga/Gb + Ex Ia Tb IIIC Da/Db
  • INMETRO Ex Ia IIC T6 Ga + Ex Ia IIIC Da, Ex D[ia Ga] IIC T6 Ga/Gb + Ex Tb[ia Da] IIIC Db
  • KGS Ex Ia IIC T6 + Ex IaD 20, Ex D[ia] IIC T6 + Ex TD[iaD] A21/20
  • NAMUR: NE 21, 43
  • NEPSI Ex Ia IIC T6 + DIP A21/A20, Ex D Ia IIC T6 + DIP A21/A20
  • WHG (Overfill Protection)

BSP Connection

  • All Other Probes, Single Cable Φ8 mm / 0.32", Double Cable Φ4 mm / 0.16", Double Rod Φ8 mm / 0.32": G 1-1/2" (ISO 228)
  • All Other Probes: G 1" (ISO 228)
  • All Other Probes: G 3/4" (ISO 228)
  • Single Cable Φ2 mm / 0.08", All Other Probes: G 1/2" (ISO 228)

Enclosure, Body Material

  • 316L Stainless Steel, 1.4404 - Option

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X
  • NEMA 6P

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150# (RF ASME B16.5)
  • 1-1/2" (DN40) - 1500# (RJ ASME B16.5)
  • 1-1/2" (DN40) - 300# (RF ASME B16.5)
  • 1-1/2" (DN40) - 600# (RF ASME B16.5)
  • 1-1/2" (DN40) - 900# (RJ ASME B16.5)
  • 1-1/2" (DN40) - JIS 10K (JIS B2220)
  • 1-1/2" (DN40) - PN 100 (EN 1092-1)
  • 1-1/2" (DN40) - PN 16 (EN 1092-1)
  • 1-1/2" (DN40) - PN 40 (EN 1092-1)
  • 1-1/2" (DN40) - PN 63 (EN 1092-1)

Flange Size - 1" (DN25)

  • 1" (DN25) - 150# (RF ASME B16.5)
  • 1" (DN25) - 1500# (RJ ASME B16.5)
  • 1" (DN25) - 2500# (RJ ASME B16.5)
  • 1" (DN25) - 300# (RF ASME B16.5)
  • 1" (DN25) - 600# (RF ASME B16.5)
  • 1" (DN25) - 900# (RJ ASME B16.5)
  • 1" (DN25) - PN 100 (EN 1092-1)
  • 1" (DN25) - PN 16 (EN 1092-1)
  • 1" (DN25) - PN 40 (EN 1092-1)
  • 1" (DN25) - PN 63 (EN 1092-1)

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (RF ASME B16.5)
  • 2" (DN50) - 1500# (RJ ASME B16.5)
  • 2" (DN50) - 300# (RF ASME B16.5)
  • 2" (DN50) - 600# (RF ASME B16.5)
  • 2" (DN50) - 900# (RJ ASME B16.5)
  • 2" (DN50) - JIS 10K (JIS B 2220)
  • 2" (DN50) - PN 100 (EN 1092-1)
  • 2" (DN50) - PN 40 (EN 1092-1)
  • 2" (DN50) - PN 63 (EN 1092-1)

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (RF ASME B16.5)
  • 3" (DN80) - 1500# (RJ ASME B16.5)
  • 3" (DN80) - 300# (RF ASME B16.5)
  • 3" (DN80) - 600# (RF ASME B16.5)
  • 3" (DN80) - 900# (RF, RJ ASME B16.5)
  • 3" (DN80) - JIS 10K (JIS B 2220)
  • 3" (DN80) - PN 100 (EN 1092-1)
  • 3" (DN80) - PN 40 (EN 1092-1)
  • 3" (DN80) - PN 63 (EN 1092-1)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (RF ASME B16.5)
  • 4" (DN100) - 1500# (RJ ASME B16.5)
  • 4" (DN100) - 300# (RF ASME B16.5)
  • 4" (DN100) - 600# (RF ASME B16.5)
  • 4" (DN100) - 900# (RJ ASME B16.5)
  • 4" (DN100) - JIS 10K (JIS B 2220)
  • 4" (DN100) - PN 100 (EN 1092-1)
  • 4" (DN100) - PN 16 (EN 1092-1)
  • 4" (DN100) - PN 40 (EN 1092-1)
  • 4" (DN100) - PN 63 (EN 1092-1)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (RF ASME B16.5)
  • 6" (DN150) - 1500# (RJ ASME B16.5)
  • 6" (DN150) - 300# (RF ASME B16.5)
  • 6" (DN150) - 600# (RF ASME B16.5)
  • 6" (DN150) - 900# (RJ ASME B16.5)
  • 6" (DN150) - PN 100 (EN 1092-1)
  • 6" (DN150) - PN 16 (EN 1092-1)
  • 6" (DN150) - PN 40 (EN 1092-1)
  • 6" (DN150) - PN 63 (EN 1092-1)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (RF ASME B16.5)
  • 8" (DN200) - 1500# (RJ ASME B16.5)
  • 8" (DN200) - 300# (RF ASME B16.5)
  • 8" (DN200) - 600# (RF ASME B16.5)
  • 8" (DN200) - 900# (RJ ASME B16.5)
  • 8" (DN200) - PN 16 (EN 1092-1)
  • 8" (DN200) - PN 40 (EN 1092-1)

NACE & NIST

  • NACE MR-0103, MR-0175, ISO 15156

NPT Connection

  • All Other Probes : 1/2" NPT (ASME B1.20.1)
  • All Other Probes: 1" NPT (ASME B1.20.1)
  • All Other Probes: 3/4" NPT (ASME B1.20.1)
  • Single Cable Φ2 mm / 0.08": 1/2" NPT Female (ASME B1.20.3) for the HT / HP Version
  • Single Cable Φ8 mm / 0.32", Double Cable Φ4 mm / 0.16", Double Rod Φ8 mm / 0.32, All Other Probes: 1-1/2" NPT (ASME B1.20.1)

Output

  • 10-30 Vdc for An Output of 22 mA at the Terminal
  • 14-30 Vdc for An Output of 22 mA at the Terminal
  • 3.8-20.5 mA According to NAMUR NE 43
  • 4-20 mA HART According to NAMUR NE 43

Power Supply

  • Terminals Output 1 - Ex D: 20-36 Vdc
  • Terminals Output 1 - Non-Ex / Ex I: 14-30 Vdc
  • Terminals Output 2 - Non-Ex / Ex I / Ex D: 10-30 Vdc

Repeatability

  • ± 0.04" (± 1 mm)

Resolution

  • ± 3 µA
  • 0.04" (1 mm)
