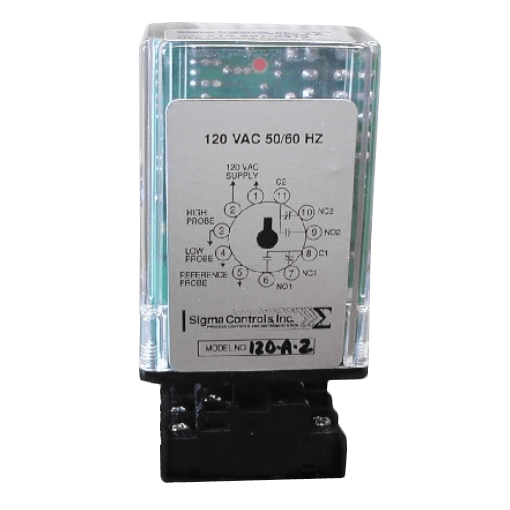

Sigma Controls Conductance Level Control System, Series 1000
Images are representations only.

Series 1000 Conductance Level Control System

Brand: Sigma Controls, Inc.

Features:
  • Automatic, providing total control
  • Consistent and accurate to 1/16"
  • Reliable with no moving parts to clog or jam
  • Solid state with simple circuitry that operates at low, safe voltages
  • Compatible with a wide range of liquids, including those with very low conductance
  • Capable of operating in a wide range of modes, including inverse operation
  • Low cost for equipment installation and maintenance
  • Economical of space with multiple functions handled by multiple electrodes in the same fitting

    • Specifications

    Brand

    Applications

    • Activation of Sump Pumps
    • High or Low Level Alarms or Controls for Boilers
    • Process & Storage Tanks
    • Process Controls Including Regulating the Water Flow in Cooling Towers

    Delay Time

    • Factory Set at 0 to 0.5 seconds

    Electrical Connectors

    • DPDT: 11-Pin Socket
    • SPDT: 8-Pin Socket

    Electrical Contacts

    • Normally Closed (NC)
    • Normally Open (NO)

    Electrical Rating

    • 1/3 hp at 120/240 Vac
    • 10 A at 120/240 Vac, Resistive

    Indication

    • Contact Indicator: LED, Open or Closed

    Operating Voltages

    • DPDT: 24 Vac
    • DPDT: 240 Vac
    • SPDT: 120 Vac

    Power

    • 24 VA

    Sensitivity

    • 0 to 50 KiloOhms
    • 50 to 1,000 KiloOhms

    Supply Voltage

    • 120 Vac, 50/60 Hz
    • 240 Vac

    Switch Type

    • DPDT
    • SPDT
