Eurotherm DC Input, Limit Alarm, Model AP1000-1024

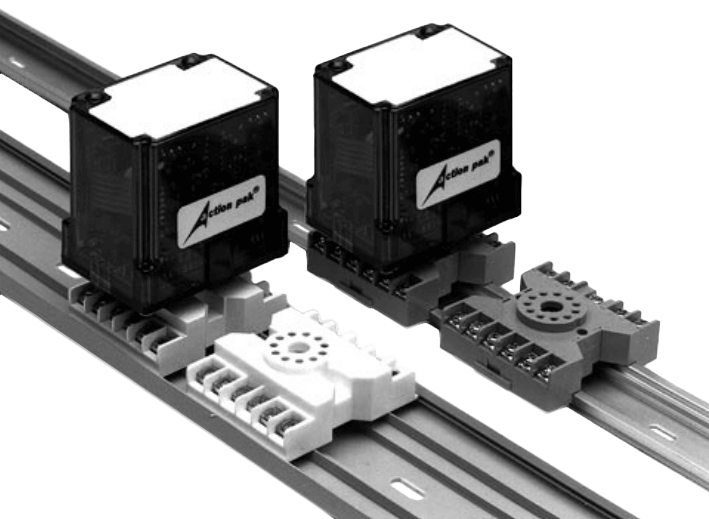

Images are representations only.

Model AP1000-1024 DC Input, Limit Alarm

Brand: Eurotherm

Limit alarms are setpoint controllers that regulate industrial processes or detect process problems. The Action Pak 1000 Series Limit Alarms are compact, electronic plug-in modules that receive a DC input (Input range is factory-set) and compare that input to a field adjustable setpoint.
Features
  • Provides relay contact closure(s) at a preset DC input level
  • Exclusive "Dynamic Deadband" prevents false trips
  • "Failsafe" operation available
  • DC signal alarm/control applications
  • Voltage/current input protection
  • Single, latching or dual setpoint
  • AC Line powered (DC optional)

Specifications

Brand

Approvals & Certifications

  • CSA

Consumption

  • Power Consumption: 2.5 W Typical
  • Power Consumption: 4 W, Maximum

Deadband

  • 0.25 to 100% of Span

Display

  • LEDs

Electrical Connectors

  • The Limit Alarm Series Use 20-Pin

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 2 A at 240 Vac
  • 5 A at 120 Vac
  • 5 A at 28 Vdc

Input

  • 0-50 mA
  • 10-500 mV Span (withstand ± 5 V, Maximum
  • 500 mV-500 V Span (withstand 1,000% of Span, 600 V, Maximum
  • Common Mode: 300 Vac, Maximum
  • Common Mode: Withstands 600 Vdc
  • Current Input: < 500 mV Drop at Full Scale Input
  • Withstands 500% of Span, 0-2 A, Maximum

Input Impedance

  • Voltage Input (100 mV-500 V Span): > 100 KiloOhms
  • Voltage Input (10 to 100 mV Span): > 1 MegaOhm

Linearity

  • Transmitter Output: ± 0.25% of Span Typical
  • Transmitter Output: ± 0.50% of Span, Maximum

Materials of Construction

  • Relay Contacts: Silver-Cadmium Oxide

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Output

  • 0-1 V
  • 100 mA - Maximum
  • 4-20 mA
  • 500 V, Maximum
  • Transmitter Output Compliance [Option T2 (4-20 mA)]: 10 Vdc
  • Transmitter Output Drive [Option T (0-1 V)]: 2 A, Maximum

Output Impedence

  • Transmitter Output [Option T (0-1 V)]: 50 ohms
  • Transmitter Output [Option T2 (4-20 mA)]: > 100 KiloOhms

Power

  • 120 Vac (± 10%, 50/400 Hz)
  • Available: 240 Vac (± 10%, 50/400 Hz)

Repeatability

  • Setpoint: 0.1% (Constant Temperature)

Response Time

  • Dynamic Deadband: 100 milliseconds
  • Normal Mode (Analog Filtering): 50 milliseconds

Span - Minimum

  • 10 mV
  • 100 µA

Stability

  • ± 0.08% of Span / °C, Maximum
  • Line Voltage: ± 0.01%/%, Maximum
  • Temperature: ± 0.05% of Span / °C Typical

Storage Temperature

  • -20° to 85° C (-4° to 185° F)

Switch Type

  • DPDT
  • SPDT
