Precision Digital PD663 Process Meter
Images are representations only.

PD663-0K0-00

Series: PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter Brand: Precision Digital Corporation

PRECISION DIGITAL PD663 Loop-Powered Process Meter, Backlight, FM/CSA/IECEx

Price
Request a Quote
Stock
Out of Stock
Request Information

Precision Digital PD663 Process Meter
  • Survivor Loop-Powered Meter
  • Display:
    • 0.6" (15.24 mm) LCD
    • 3.5+ Digits; -1999 to 2999
    • Loop Powered Backlight
  • Performance:
    • HART Protocol Transparent
    • 1.7 V Drop
    • Four-Button Programming
  • Input: 4-20 mA
  • Connection:
    • Removable screw terminals
    • 12 to 22 AWG
  • Operating Temperature: -40°C to +75°C (-40°F to +167°F)
  • Enclosure Materials: Explosion-proof cast aluminum with glass window
  • Mounting:
    • May be mounted directly to conduit
    • Two mounting holes for 1.5" pipe or wall mounting
  • Environmental Protection:
    • NEMA 4X
    • IP68
    • Explosion-Proof
  • Agency Approvals:
    • FM
    • IECEx
    • CSA

Specifications

Brand

Approvals & Certifications

  • ATEX, II 2 GD. Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40 to 75° C
  • CSA, Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, Ex D IIC T6. Ta = -40 to 75° C
  • FM Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, AEx D IIC T6 Gb. Zone 21, AEx Tb IIIC T85° C. Ta = -40 to 75° C
  • IECEx SIR 10.0056X. Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40° to +75° C

Conduit Connection

  • 1/2" NPT

Display

  • 0.6" LCD
  • 3-1/2-Digit LCD

Enclosure, Body Material

  • Explosion-proof Cast Aluminum with Glass Window

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Torque

  • 4.5 In/Lbs

Voltage Drop

  • 1.7 Vdc at 20 mA
  • 4.7 Vdc at 20 mA with Backlight

Documentation

Data Sheets

Certifications

Instruction Manuals

View Product Series

Similar SKUs

PD662-0K0-00
PD662-0K0-00

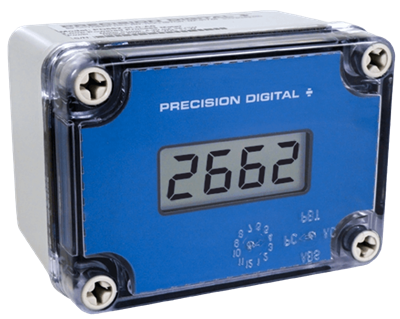

PD662 Survivor NEMA 4X Loop-Powered Process Meter
