Krohne Guided Radar TDR Level Meter, OPTIFLEX 1100
Images are representations only.

OPTIFLEX 1100

Series: OPTIFLEX 1100 Guided Radar TDR Level Meter Brand: Krohne
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Enclosure / Body Material - Aluminium
  • Probe Type / Probe Length / Probe Material - Signal Cable 0.08" (Ø 2 mm) / 65.6 Feet (20 meters) / Stainless Steel 316/1.4401
  • Process Connection - G 3/4" A (ISO 228)
  • Cable Entry / Cable Gland - M20 x 1.5 / Plastic
  • Display - Blind Version
  • Display Language [English is Supplied with All Devices] - Without (For The Blind Version of the Device)

Specifications

Brand

Accuracy

  • ± 0.1% of Measured Distance, when > 33 feet (10 meters)
  • ± 0.4" (± 10 mm) when Distance ≤ 33 feet (10 meters)
  • ± 0.8" (± 20 mm)

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Applications

  • Collectors & Simple Process Applications
  • Level Measurement in Buffer Tanks
  • Silo Level Monitoring in Quarrying & Agriculture
  • Volume Measurement for Storage Tanks

Approvals & Certifications

  • EN 60068-2-29, EN 60068-2-34
  • ISO 228

Approvals & Certifications

  • CE
  • EMC Directive 2004/108/EC, EN 61326-1 (2006)

BSP Connection

  • G 1" A (ISO 228)
  • G 3/4" A (ISO 228)

Cable Entry

  • 0.5 to 1.5 mm² - Capacity (Terminal)
  • 1/2" NPT (Brass/without Cable Gland)
  • M20 x 1.5 (Plastic Cable Gland Included)

Current

  • 22 mA - High (Error Signal)
  • 3.6 mA - Low (Error Signal)

Diameter

  • Coaxial Cable: 0.55" (14 mm)
  • Single Cable: 0.08" (2 mm)
  • Single Cable: 0.150" (4 mm)

Display

  • LCD Display (128 × 64 Pixels in 8-Step Greyscale with 4-Button Keypad)

Electrical Connectors

  • 2-Wire Loop-Powered

Environmental Protection

  • IP66
  • IP67

Gasket Material

  • EPDM

Measuring Range

  • 2.4 to 65.6 feet (0.73 to 20 meters) - for Liquids
  • 3.3 to 32.8 feet (1 to 10 meters) - for Solids

Media

  • Liquids
  • Solids

NPT Connection

  • 1" NPT - ASME B1.20.1
  • 3/4" NPT (ASME B1.20.1)

Operating Pressure

  • psig: -14.5 to 232 (kPa: -100 to 1,600, barg: -1 to 16)

Operating Temperature

  • -50° to 100° C (-58° to 212° F)

Output

  • 3.8-20.5 mA
  • 4-20 mA

Power Supply

  • 14-30 Vdc

Pressure Range

  • barg: 0 to 16
  • kPa: 0 to 1,600
  • psig: 0 to 232

Process Connection Material

  • 316L Stainless Steel, 1.4404

Process Temperature

  • 0° to 100° C (32° to 210° F)

Repeatability

  • ± 0.08" (± 2 mm)

Resolution

  • ± 1 µA
  • 0.04" (1 mm)

Sensor, Probe Length

  • Maximum

Sensor, Probe Material

  • Coaxial Cable: 316L Stainless Steel, 1.4404
  • Single Cable: 316 Stainless Steel 1.4401

Storage Temperature

  • -50° to 85° C (-60° to 185° F)

Viscosity

  • Coaxial: ≤ 500 MPas
  • Single Cable: 10,000 MPas

Documentation

Data Sheets

View Product Series

Similar SKUs

MODEL GC30
MODEL GC30
Model GC30 Ultra-Compact Digital Differential
Ashcroft Inc.
Request a Quote
Out of Stock
MODEL KX
MODEL KX
Model KX Flush Mount Pressure Transducer
Ashcroft Inc.
Request a Quote
Out of Stock
V01 SERIES GAUGE VALVE
V01 SERIES GAUGE VALVE
V01 Series Gauge Valve
Ashcroft Inc.
Request a Quote
Out of Stock
V02 SERIES DIRECT AND REMOTE MOUNT 3-VALVE MANIFOLD
V02 SERIES DIRECT AND REMOTE MOUNT 3-VALVE MANIFOLD
V02 Series Direct & Remote Mount 3-Valve Manifold
Ashcroft Inc.
Request a Quote
Out of Stock
V02 SERIES DIRECT AND REMOTE MOUNT 5-VALVE MANIFOLD
V02 SERIES DIRECT AND REMOTE MOUNT 5-VALVE MANIFOLD
V02 Series Direct & Remote Mount 5-Valve Manifold
Ashcroft Inc.
Request a Quote
Out of Stock
V02 SERIES MULTIPORT VALVE
V02 SERIES MULTIPORT VALVE
V02 Series Multiport Valve
Ashcroft Inc.
Request a Quote
Out of Stock

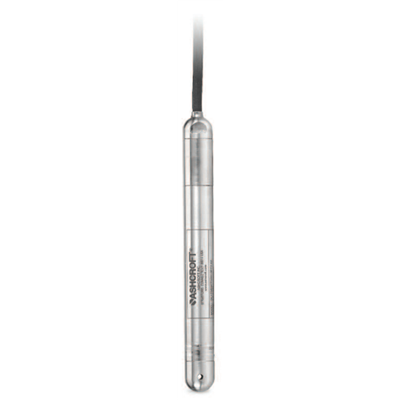

SL17
