Ashcroft Pressure Transmitter, Model K1
Images are representations only.

MODEL K1

Series: Model K1 Pressure Transmitter Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Type - K1
  • Accuracy - ± 0.5%, ± 0.014%/°F
  • Pressure Connection - 1/8" Female NPT
  • Output Signal - 1-6 Vdc
  • Electrical Termination - 36" Cable, Shielded, PVC Sheathing
  • Pressure Range - psi: 0 to 15
  • Approvals - Without

Specifications

Brand

Accuracy

  • ± 0.5% of Span
  • ± 1% of Span

Applications

  • Construction Equipment
  • General-purpose
  • HVAC Equipment
  • Hydraulic Applications
  • Industrial Applications
  • Machine Tools
  • Medical Equipment
  • Pump Control
  • Refrigerators
  • Test & Measurement

Approvals & Certifications

  • FM
  • UL

Burst Pressure

  • 150% to 800% of Full Scale

Compensated Temperature

  • -28° to 71° C (-20° to 160° F)

Diaphragm Material

  • 630 Stainless Steel

Display

  • Digital Display

Electrical Connectors

  • 1/2" NPT Male Conduit with 36" Cable Leads
  • 4-Pin Bendix
  • 6-Pin Bendix
  • Hirschmann Miniature
  • No. 24 AWG, 36" PVC, Shielded

Electrical Protection

  • Reverse Polarity

Enclosure, Body Material

  • 300 Series Stainless Steel
  • Stainless Steel

Environmental Protection

  • IP10
  • IP66
  • NEMA 1
  • NEMA 4X

Humidity

  • 95% Relative Humidity, Non-Condensing

Non-Linearity

  • ± 0.25% of BFSL
  • ± 0.4% of BFSL

NPT Connection

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 1/8" NPT Female
  • 1/8" NPT Male

Operating Temperature

  • -28° to 82° C (-20° to 180° F)

Output

  • 1-11 Vdc, 3-Wire
  • 1-5 Vdc, 3-Wire
  • 1-6 Vdc, 3-Wire
  • 4-20 mA, 2-Wire

Position Effect

  • < 0.01% of Full Scale

Power Requirement

  • 10-36 Vdc Unregulated, < 3 mA for Voltage Output

Pressure Cycles

  • Durability: 10⁸ Cycles 20 / 80% of Span with Negligible Performance Change

Pressure Range

  • bar: 0 to 1,379
  • kPa: 0 to 137,900
  • psi: 0 to 20,000

Pressure Type

  • Compound Pressure
  • Gauge

Proof Pressure

  • 120% to 200% of Full Scale

Response Time

  • < 5 milliseconds

SAE Connection

  • 7/16"-20 SAE Male

Shock

  • 100 G, 20 milliseconds Shock in Any Axis

Span & Zero Effect

  • 0.5% Accuracy Class Only: ± 0.014% of Span / °F
  • Accuracy Class 0.5%: ± 0.028% of Span / °F
  • Accuracy Class 1%: ± 0.04% of Span / °F

Stability

  • ± 0.5% of Span/Year

Storage Temperature

  • -54° to 121° C (-65° to 250° F)

UNF/UNC Connection

  • 9/16"-18 UNF Female 2B AMINCO

Vibration Effect

  • Vibration Sweep: <± 0.1% of Full Scale for 0 to 2,000 Hz at 20 G's in Any Axis

Documentation

Data Sheets

Industry Brochures

Installation & Maintenance

Product Information

Selection Guides

View Product Series

Similar SKUs

MODEL GC30
MODEL GC30
Model GC30 Ultra-Compact Digital Differential
Ashcroft Inc.
Request a Quote
Out of Stock
MODEL GC31
MODEL GC31
Model GC31 Ultra-Compact Digital Pressure Sensor
Ashcroft Inc.
Request a Quote
Out of Stock

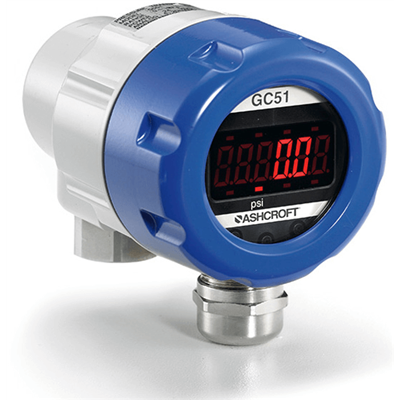

MODEL GC51
